2021 Sonic X SN220VRBX
| UVW (Unloaded Vehicle Weight)* | 5,610 |
| Dry Hitch Weight* | 570 |
| Dry Axle Weight* | 5,040 |
| CCC (Cargo Carrying Capacity) | 1,675 |
| Interior Height | 82" |
| Exterior Height (with A/C) | 10' 4" |
| Exterior Width | 90" |
| Exterior Length** | 27' 6" |

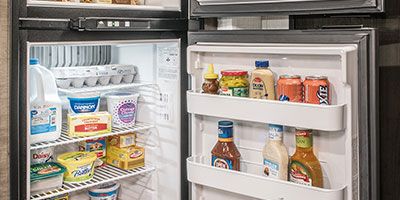

| Refrigerator (Cubic Feet) | 7 |
| Water Heater Cap. (Gal. G/E w/DSI) | 6 |
| Fresh Water Cap. (Gal.) | 78 |
| Black Water Cap. (Gal.) | 30 |
| Gray Water Cap. (Gal.) | 30 |
| LP Gas Cap. (Lbs.) | 40 |
| Furnace BTUs (1,000s) | 20 |

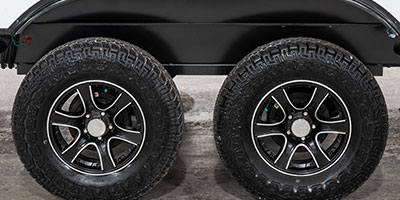

| Tire Size | 15" |

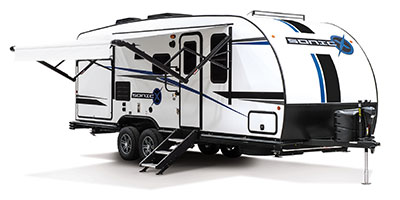

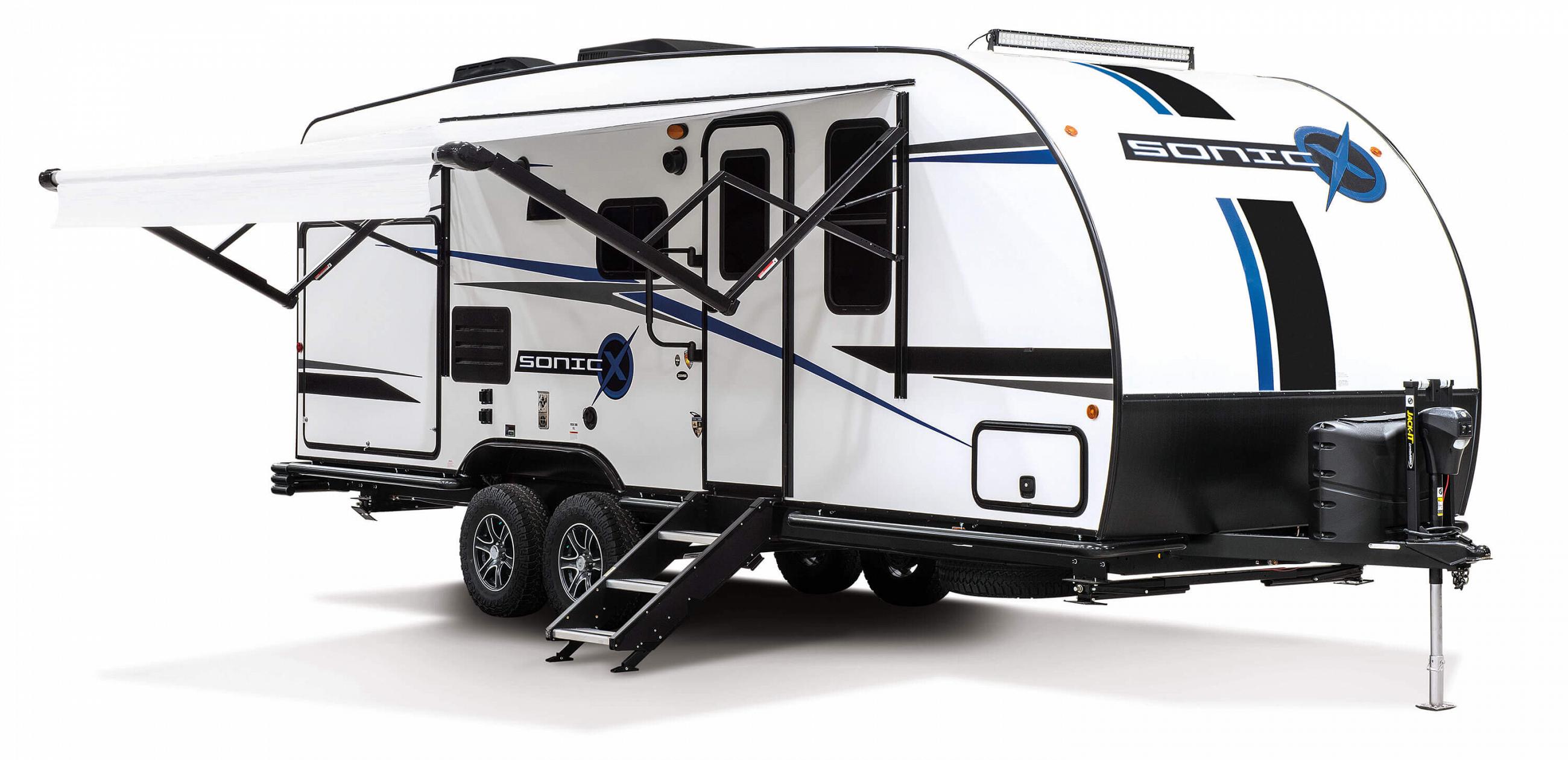

| Awning | 12' |
*This weight reflects the rolling average unit weight for each model. Your trailer weight will vary according to optional equipment.
**Exterior length is measured from rear of bumper to leading edge of coupler.

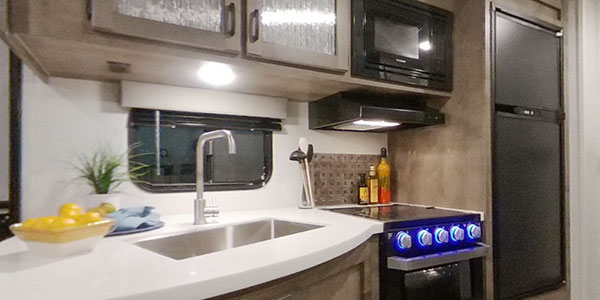

2021 - Interior 360
2021 - Videos
2021 - Shown in Ash Décor

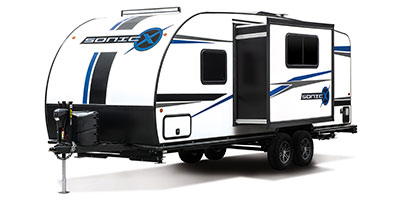

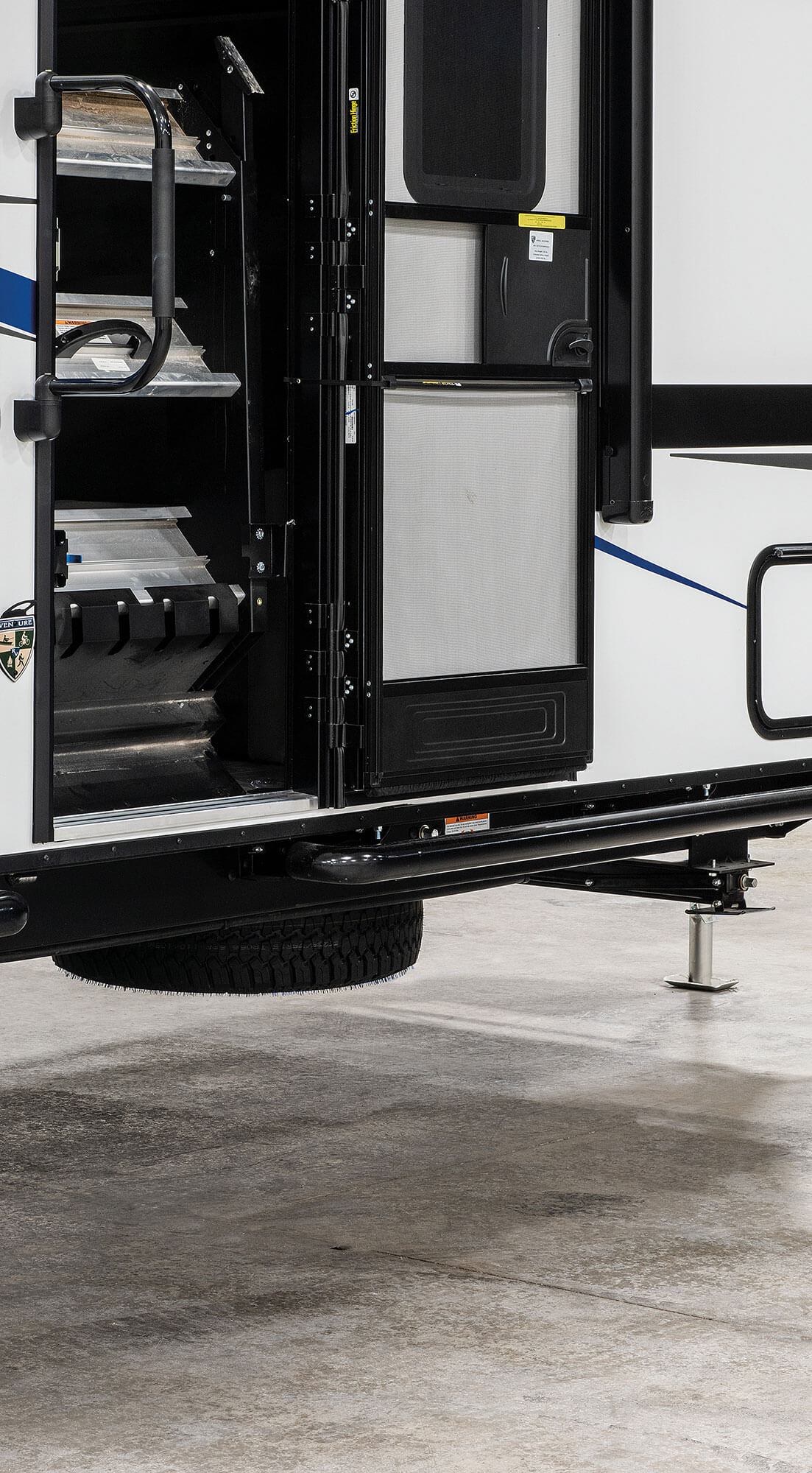

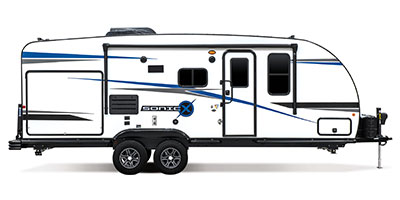

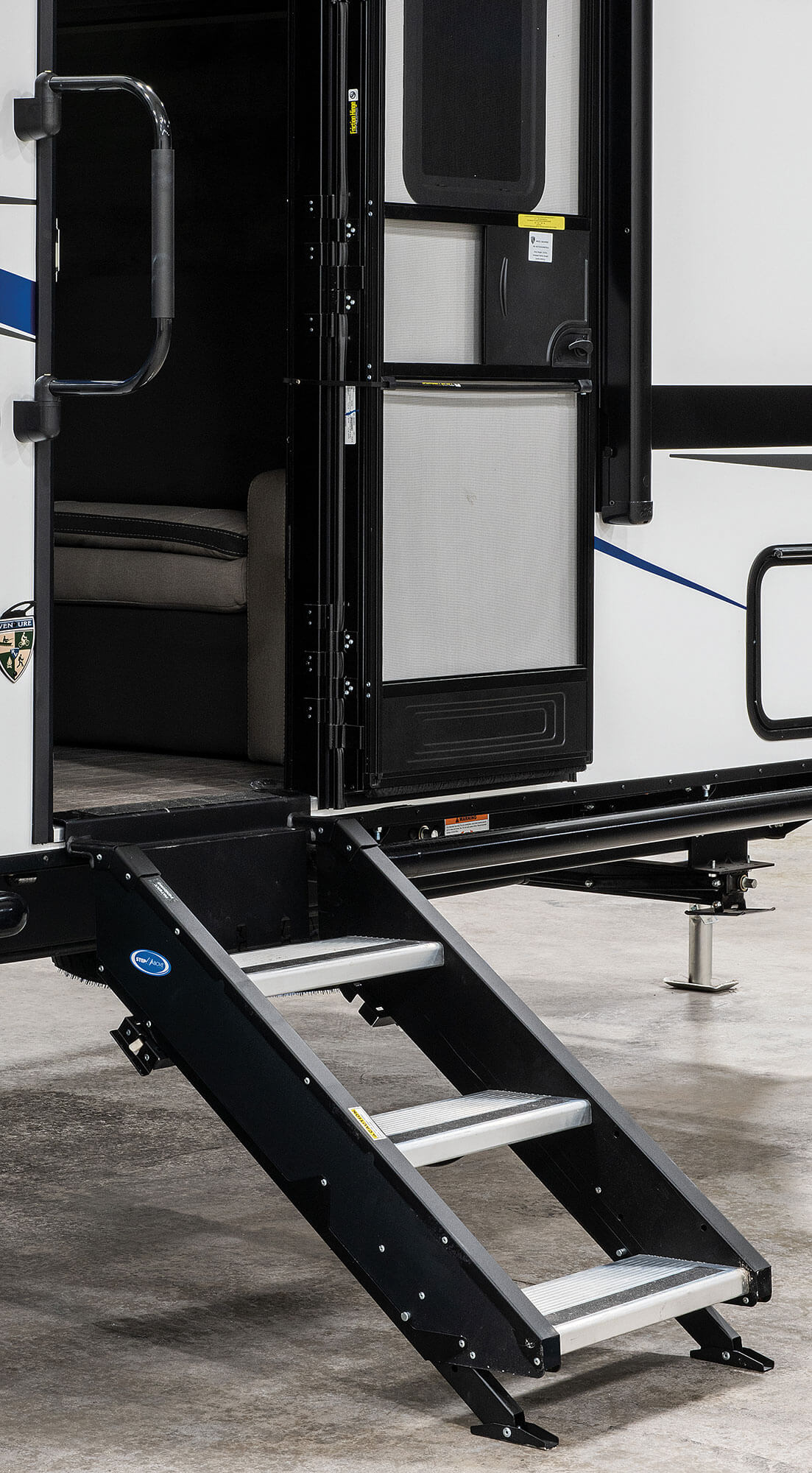

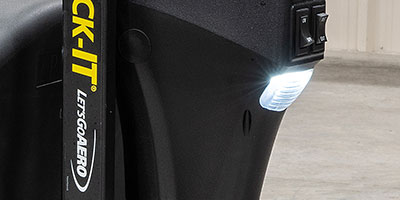

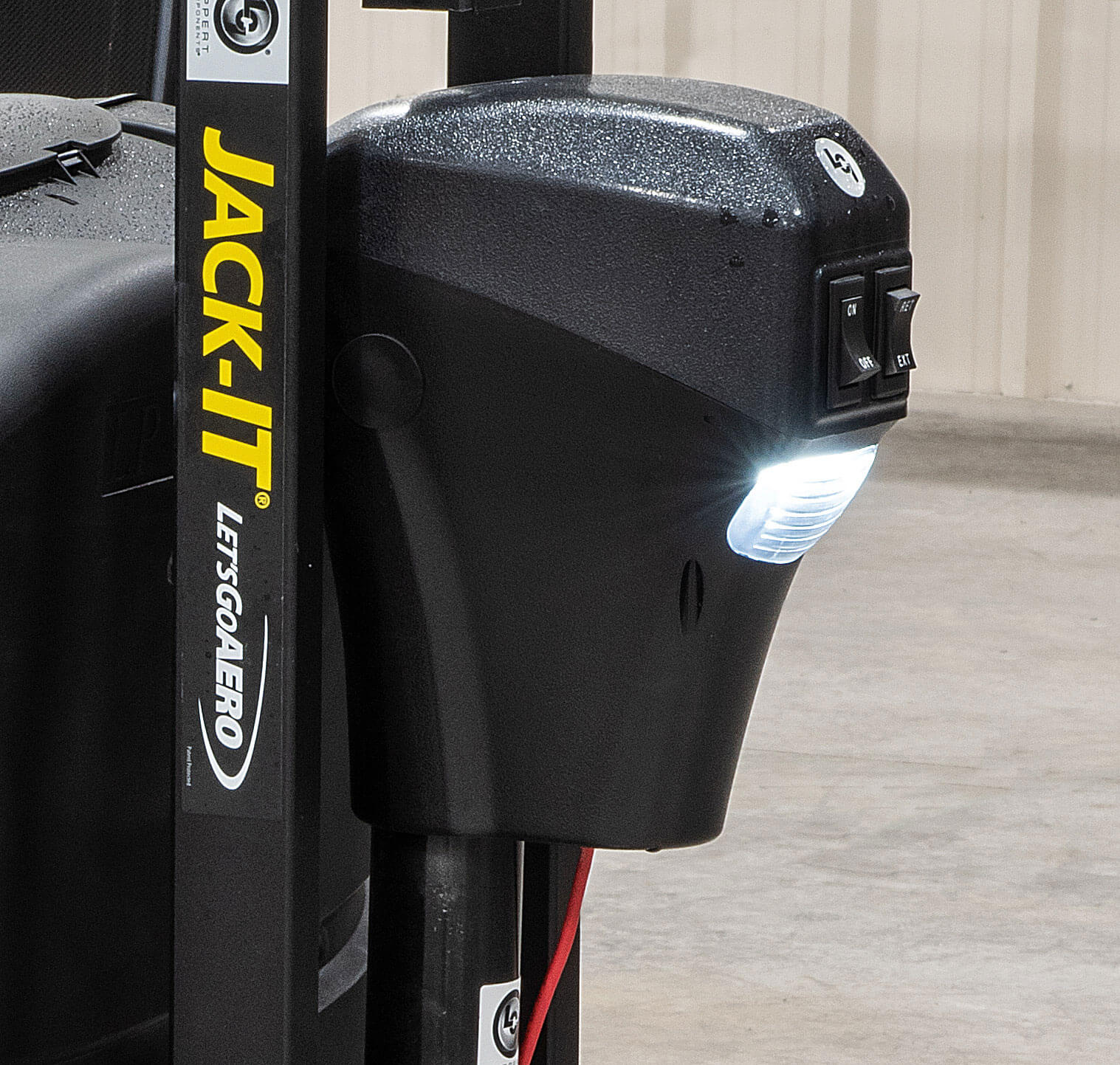

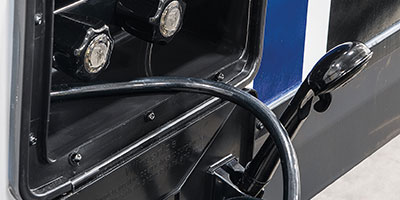

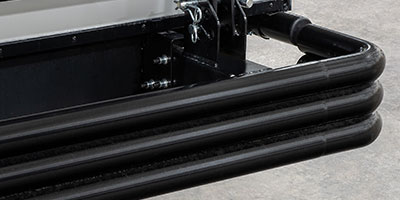

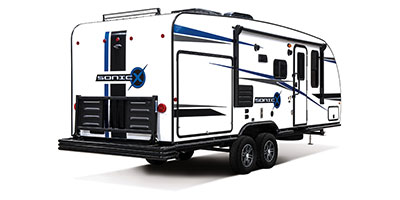

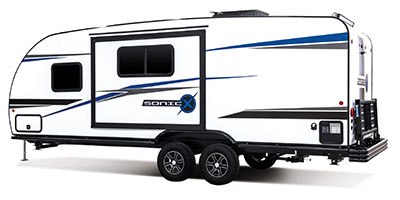

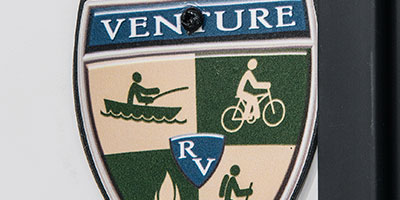

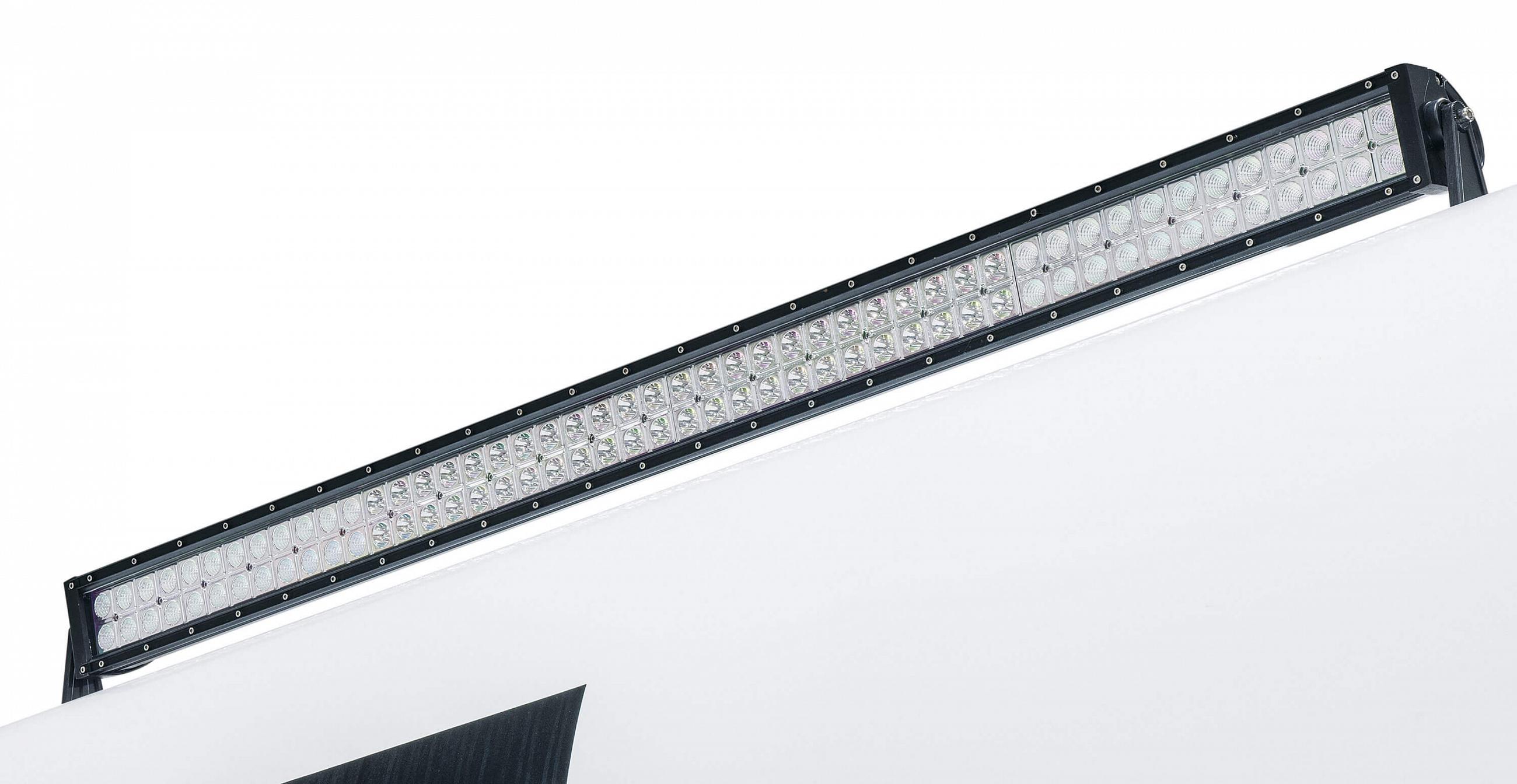

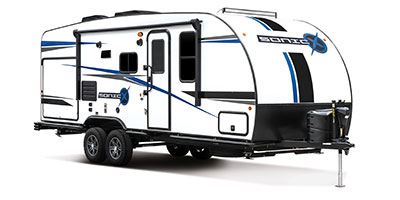

2021 - Exterior
