2020 Sonic SN200VML

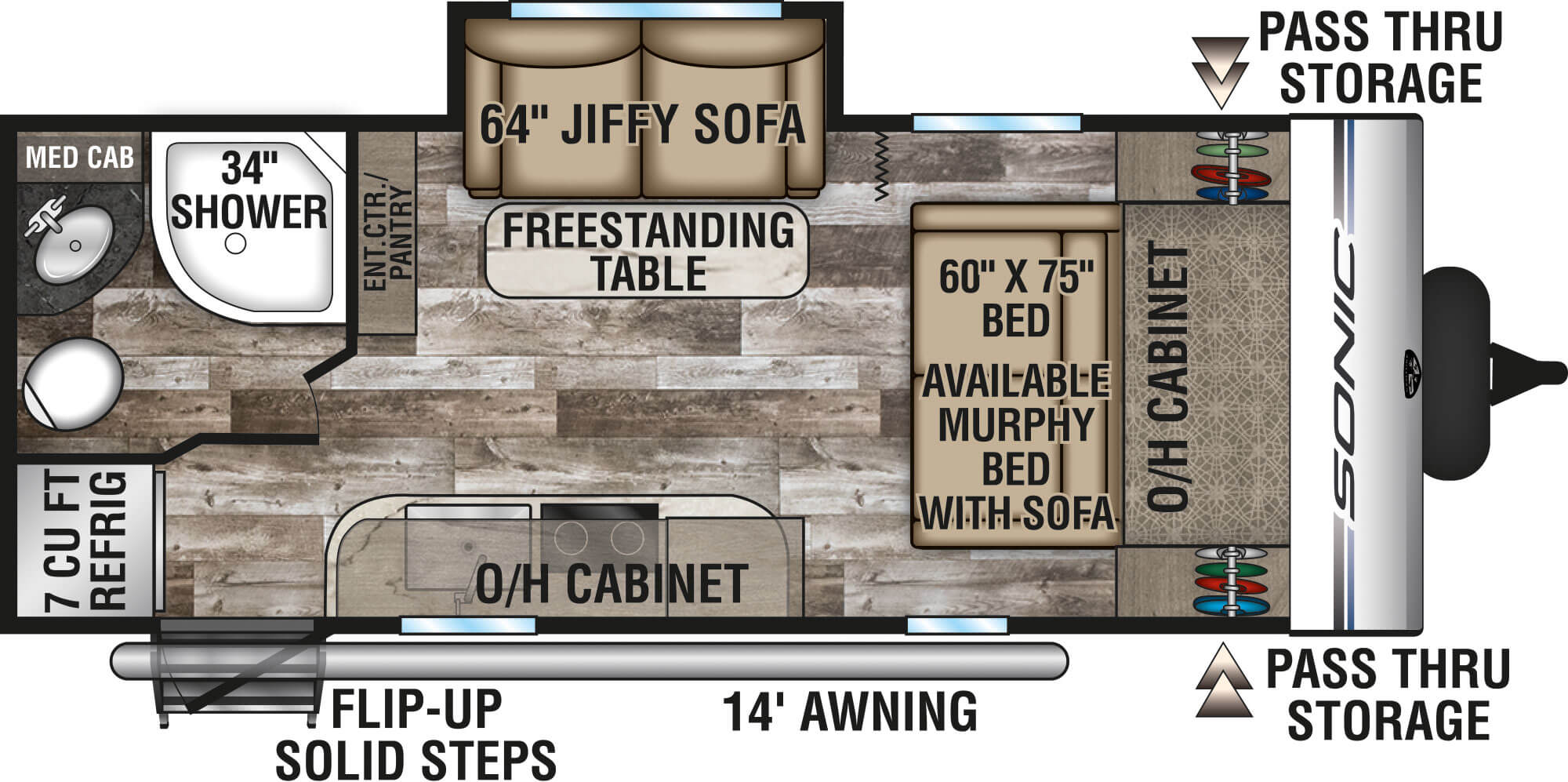

![2020 Venture RV Sonic SN200VML Travel Trailer Floorplan](images/2020/floorplans/floorplan-page/2020-Venture-RV-Sonic-SN200VML-Travel-Trailer-Floorplan.jpg)
UVW (Unloaded Vehicle Weight)* | 4,000 |
Dry Hitch Weight* | 300 |
Dry Axle Weight* | 3,700 |
NCC (Net Carrying Capacity) | 1,750 |
Interior Height | 82" |
Exterior Height (with A/C) | 10' 4" |
Exterior Width | 90" |
Exterior Length | 23' 4" |

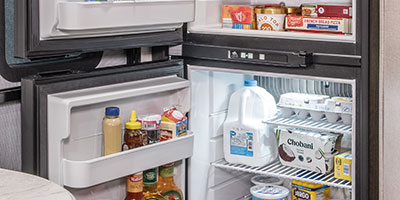

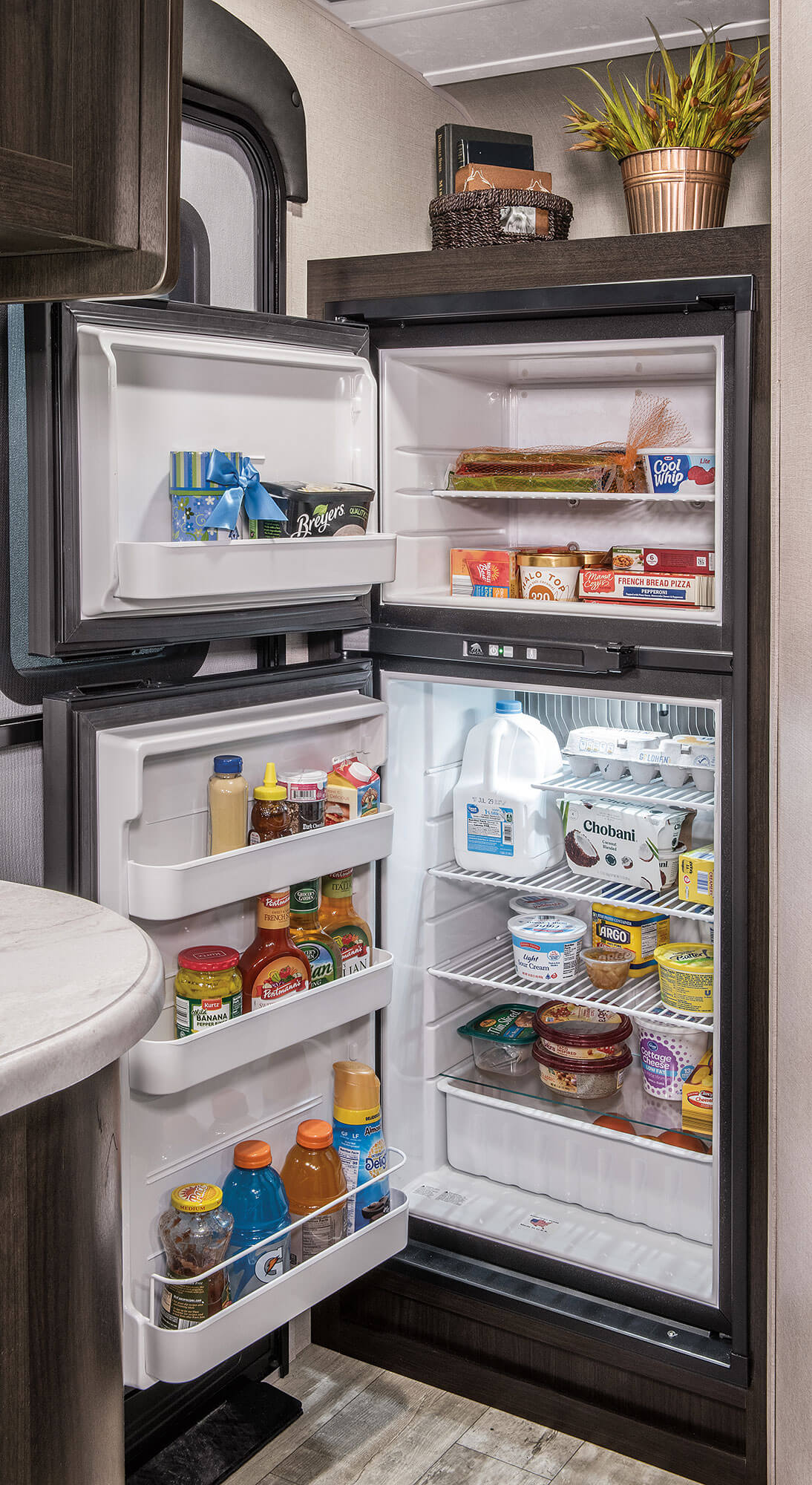

Refrigerator (Cubic Feet) | 7 |
Water Heater Cap. (Gal. G/E w/DSI) | 6 |
Fresh Water Cap. (Gal.) | 39 |
Black Water Cap. (Gal.) | 30 |
Gray Water Cap. (Gal.) | 30 |
LP Gas Cap. (Lbs.) | 40 |
Furnace BTUs (1,000s) | 20 |

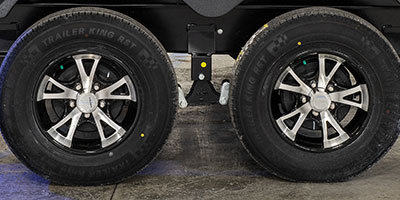

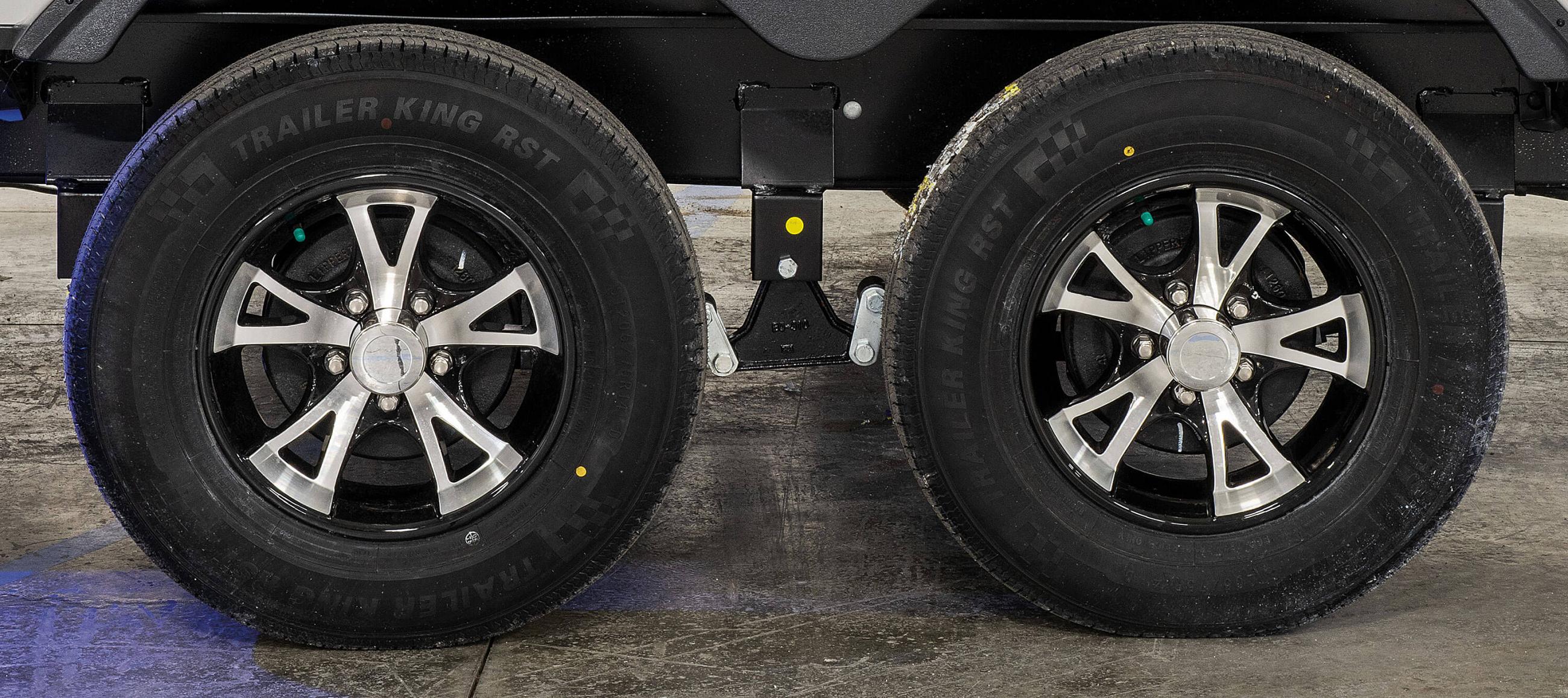

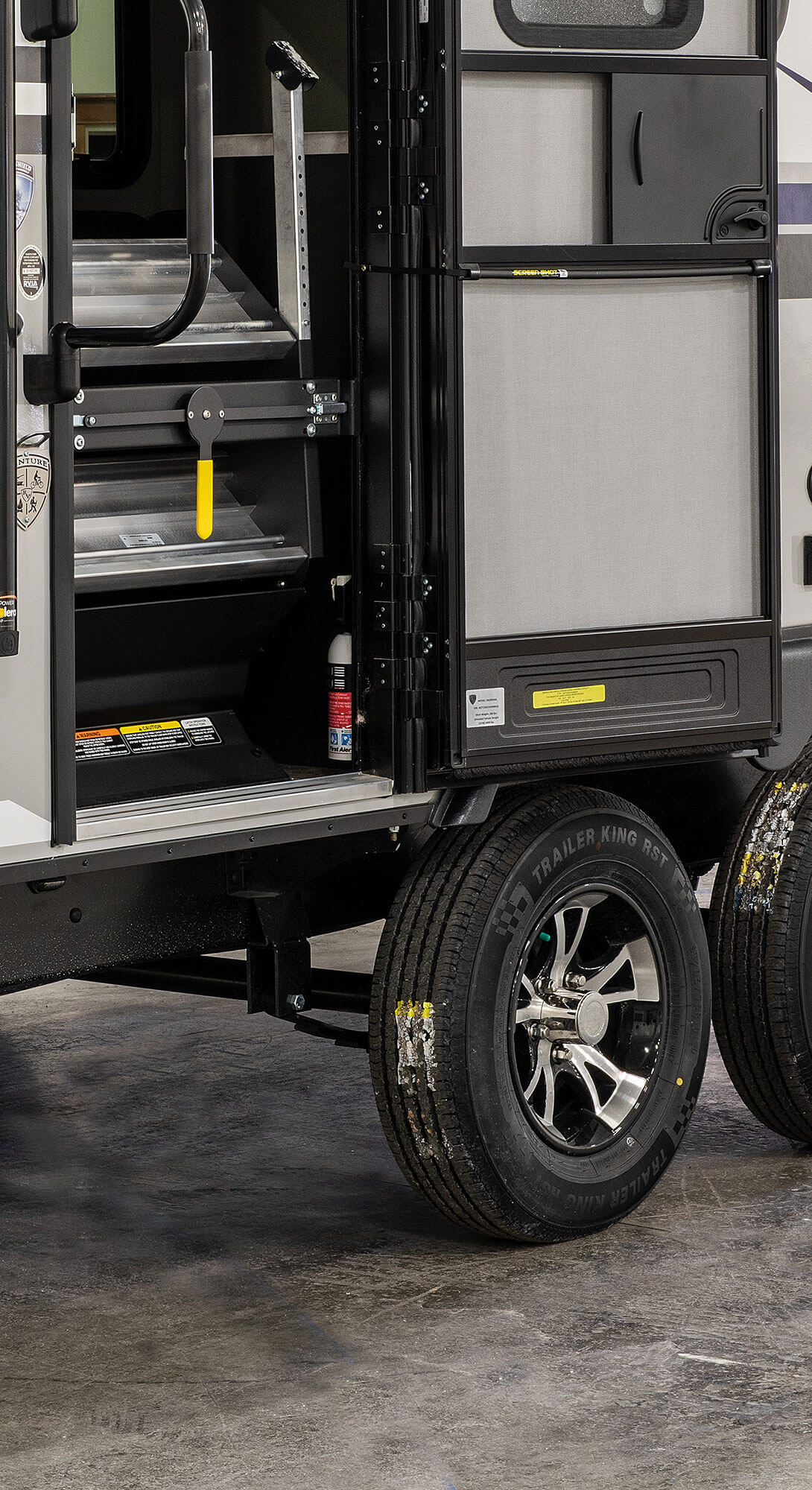

Tire Size | 14" |

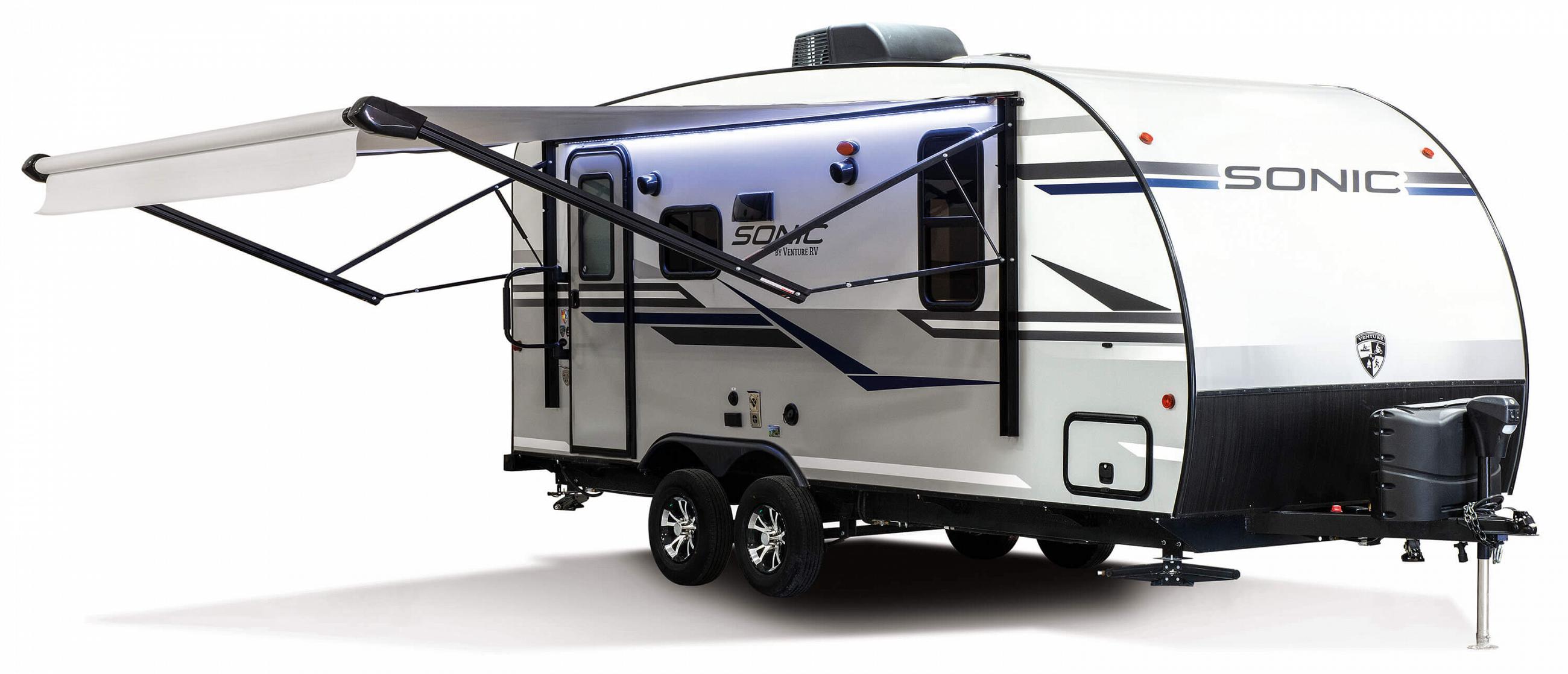

Awning | 14' |
*This weight reflects the rolling average unit weight for each model. Your trailer weight will vary according to optional equipment.
