2023 Sonic SN190VRB
| UVW (Unloaded Vehicle Weight)* | 3,880 |
| Dry Hitch Weight* | 390 |
| Dry Axle Weight* | 3,490 |
| CCC (Cargo Carrying Capacity) | 1,895 |
| Interior Height | 82" |
| Exterior Height (with A/C) | 10' 4" |
| Exterior Width | 90" |
| Exterior Length** | 23' 3" |
| Refrigerator (Cubic Feet) | 8 |
| Water Heater Cap. (Gal. G/E w/DSI) | 6 |
| Fresh Water Cap. (Gal.) | 39 |
| Black Water Cap. (Gal.) | 30 |
| Gray Water Cap. (Gal.) | 30 |
| LP Gas Cap. (Lbs.) | 40 |
| Furnace BTUs (1,000s) | 20 |

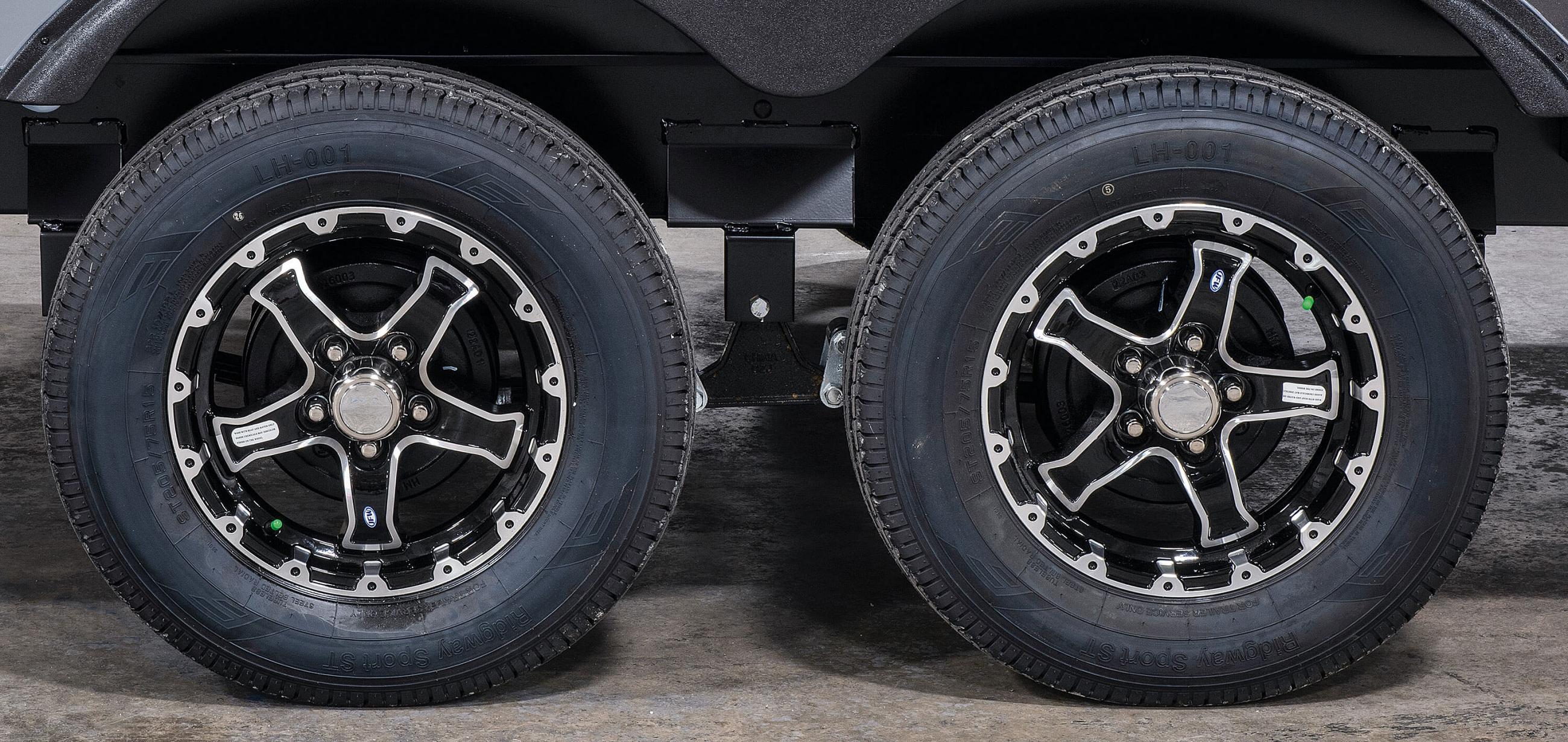

| Tire Size | 15" |

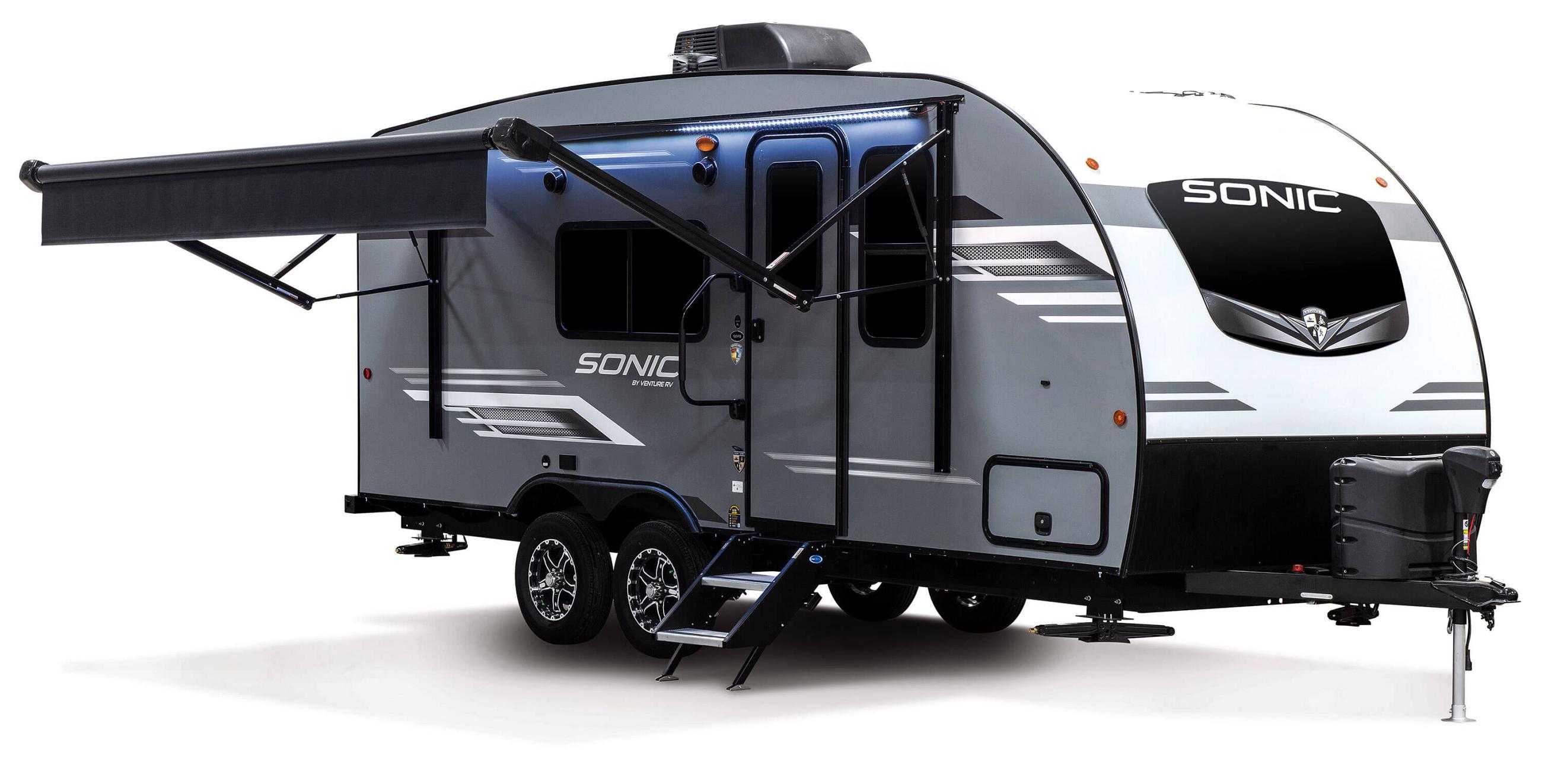

| Awning | 13' |
*This weight reflects the rolling average unit weight for each model. Your trailer weight will vary according to optional equipment.
**Exterior length is measured from rear of bumper to leading edge of coupler.

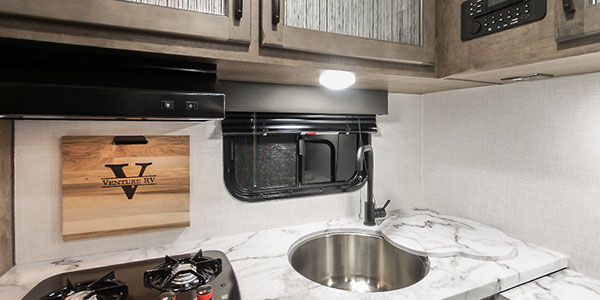

2023 - Interior 360
2023 - Videos*
2023 - Shown in Slate Décor*

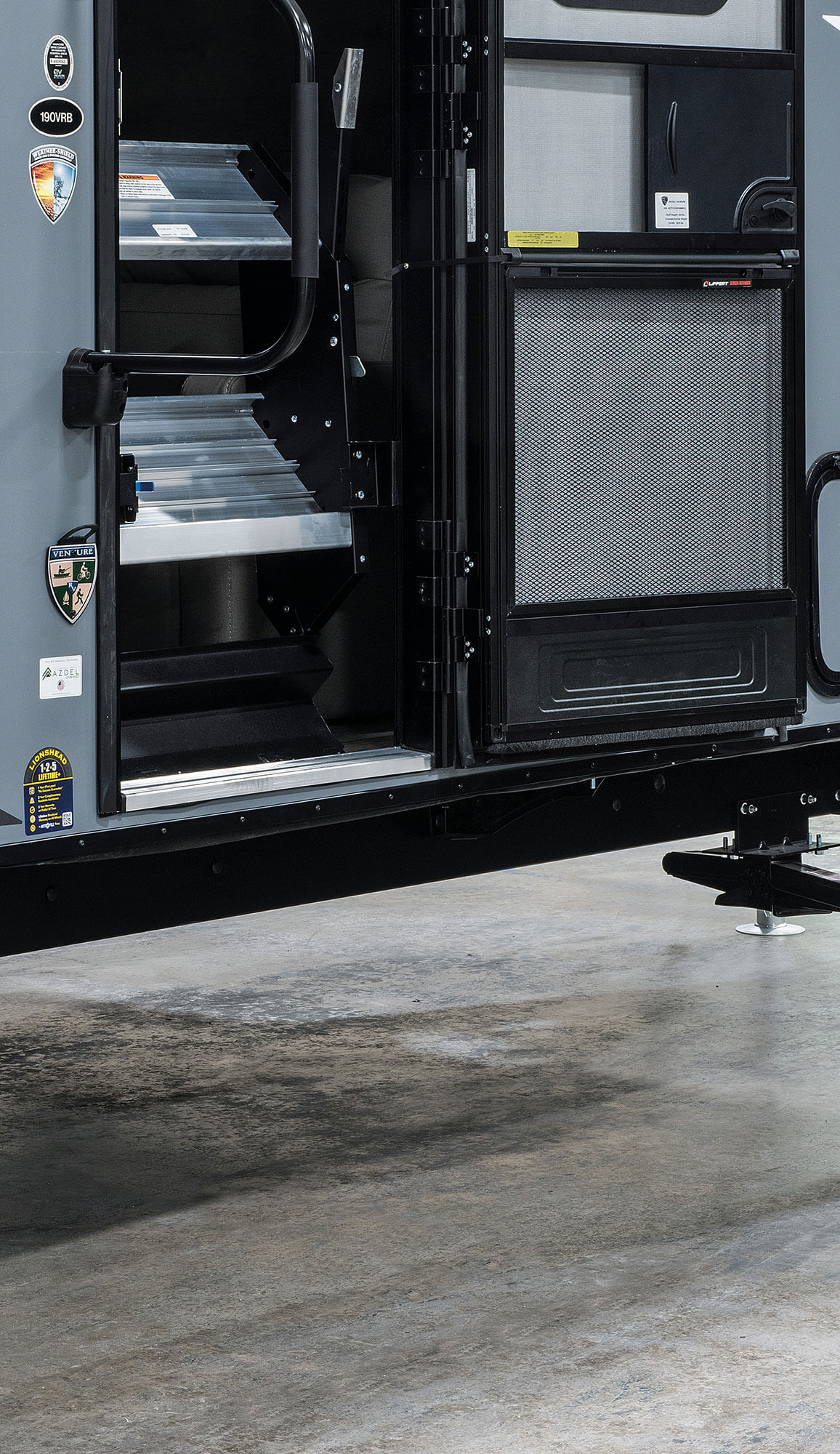

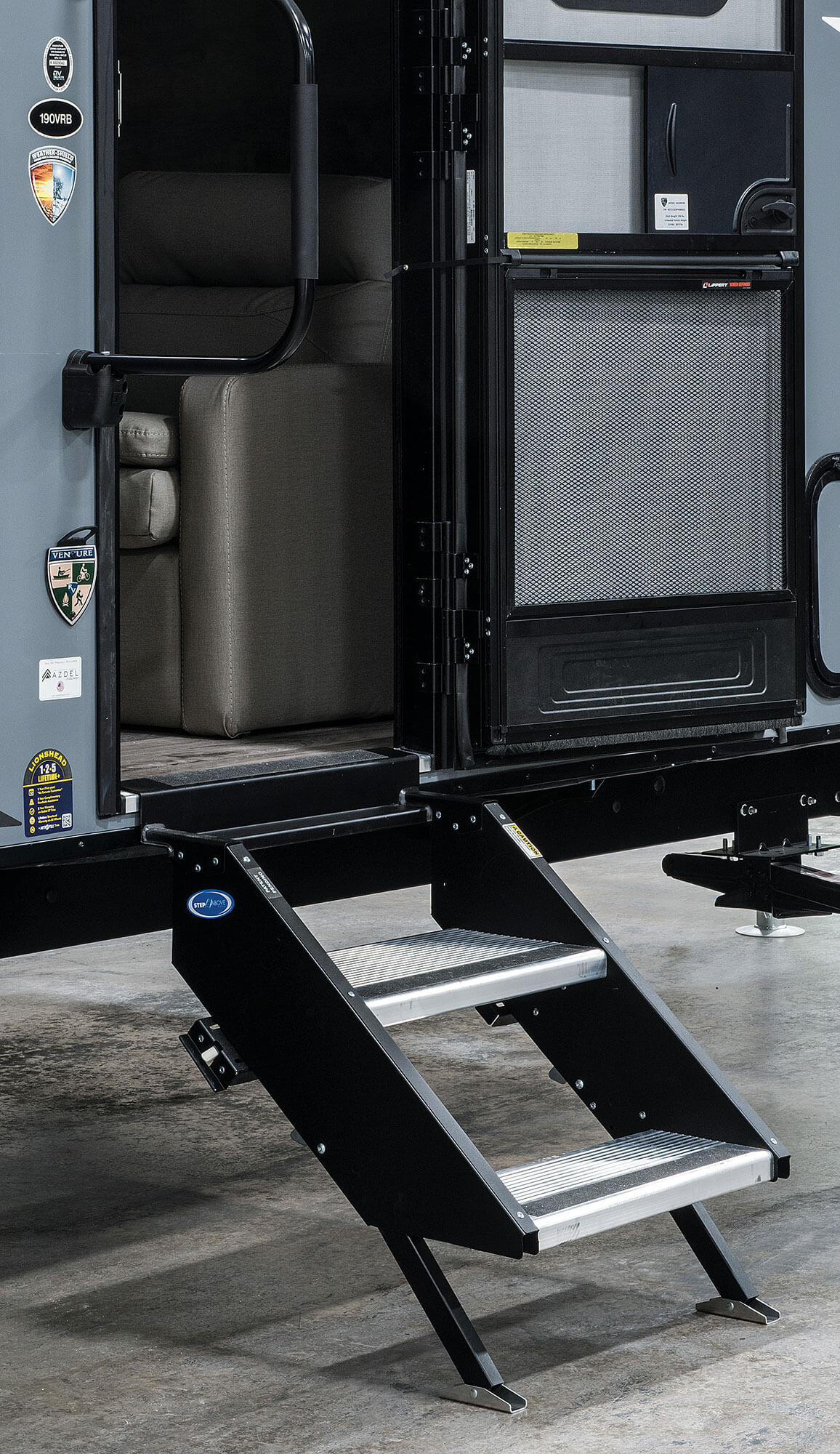

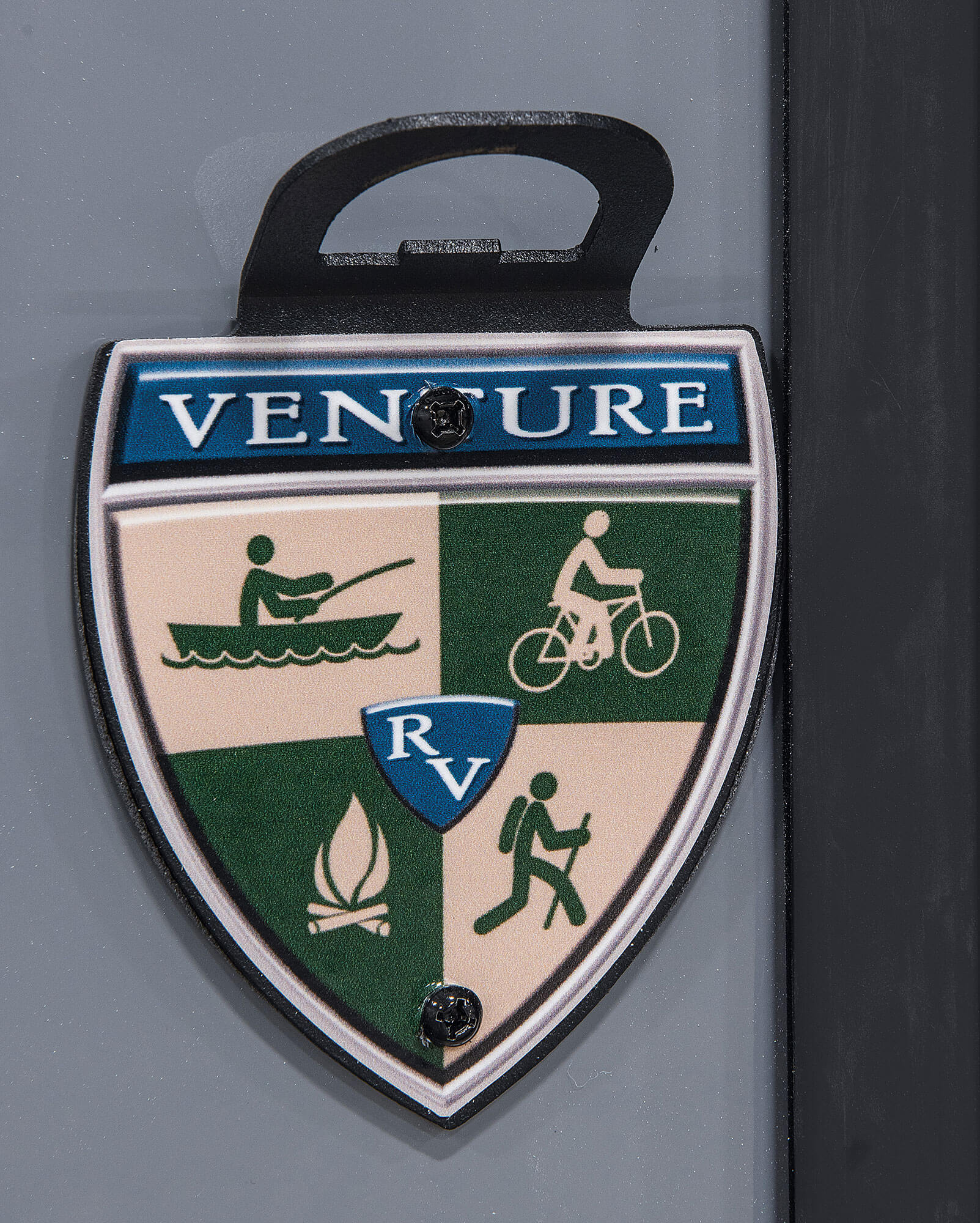

2023 - Exterior
*Photos and video are shown as a representation of the featured floorplan, all fabrics and wood selections can be found on the Features page.
