2023 Sonic X Features
2023 Décor
-
Ash
-
Slate
-
Heirloom Maple
Standards and Options
-
Sonic Xtreme Solar Package (Standard)
(2) 190W roof mounted solar panels, (2) 250 amp hour lithium ION battery, IC2,000W inverter w/charger, 11.5 low profile, low power consumption A/C, high definition interior/exterior LED lighting.
-
Sonic Xtreme OFF-ROAD Package (Standard)
360-Degree welded tubular brush guard, (2) roof-mounted high definition LED light bars, triple stack round welded bumper, (4) 15" off-road tires, 15" under-mount spare tire, (2) 3,500 LB torsion axles, (4) high-rise power stabilizer jacks w/independent motors, 7 1/2" BAL Norco NXG Huck-bolted frame, 78 GAL fresh water tank.
-
Sonic Xtreme Storage System (Standard)
Convertible gear/bike/cargo rack, hitch-mounted bike rack, outside garage storage system, concealed gun/fishing rod cabinet.
-
Weather-Shield Package (Standard)
Forced-air heated & enclosed underbelly, 360° residential fiberglass insulation, 360° radiant foil insulation, radiant foil bubble insulation-wrapped tanks, lithium battery thermostat-controlled heat pad (360° = roof, floor, front/rear walls).
-
Sonic Xtreme Luxury Package (Standard)
Solid-surface countertops, LED TV w/swing-arm mount, dark-tint windows.
-
Exterior Package (Standard)
Friction-hinge entry door, battery disconnect switch, steel fender guards, 3-piece fiberglass roof system, 5/8" tongue & groove plywood floor decking, spread axles w/auto-adjust brakes & EZ Lube hubs, NXG Huck-bolt frame, prewired for Furrion backup camera, dedicated cable & satellite hookups, Furrion marine-grade detachable power cord, slam-latch baggage doors w/magnetic catches, motion-activated pass-thru storage light, hot & cold outside shower, Keyed Alike key system, Venture bottle opener/dog tie-out, carbon fiber pattern rock guard & slideout end walls, solid flip-up step, swing-away grab handle, Screen Shot spring screen door, LED lighted power awning, black tank flush, (2) 20 LB LP tanks w/easy-access cover.
-
Interior Package (Standard)
Bathroom power exhaust fan, porcelain foot-flush toilet, StorMore bedside nightstands w/110V & USB charging, quilted comforter, designer padded headboard, 6 GAL gas/electric DSI water heater, Safe Tek Box w/110V & USB charging ports, motion-activated interior entry light, Beauflor residential linoleum w/7-year limited warranty, living area skylight, LED lighting w/individual switches, 82" ceiling height, shoe cubby (VBF), stainless steel microwave, designer tile backsplash, 7 CU FT double-door refrigerator/freezer, vented range hood, Surf(x) seamless tabletops, Euro steel faucet.
-
Options
Nomad Xtreme water filtration system, 12V 8 CU FT refrigerator.
Extreme Features
-

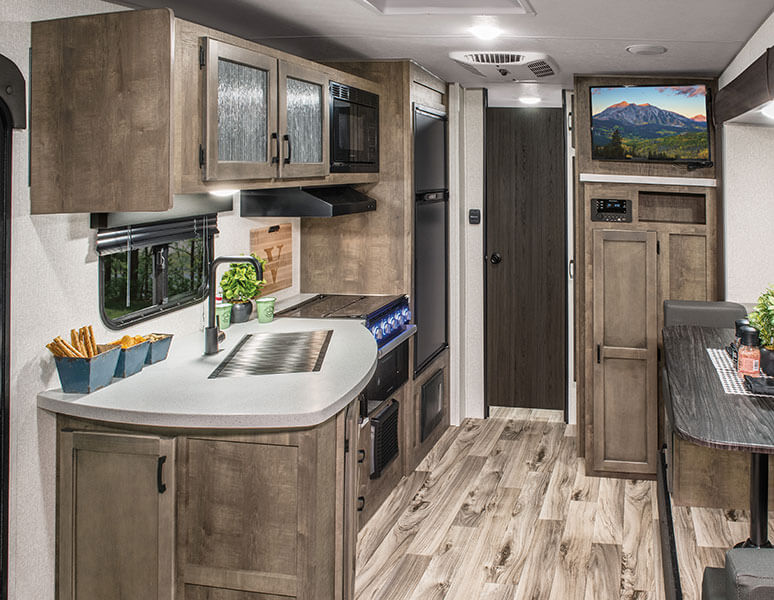

Sonic X interiors include solid wood cabinets with roller ball bearing drawer guides, a large undermount stainless steel single bowl sink, and two interior speakers.
-

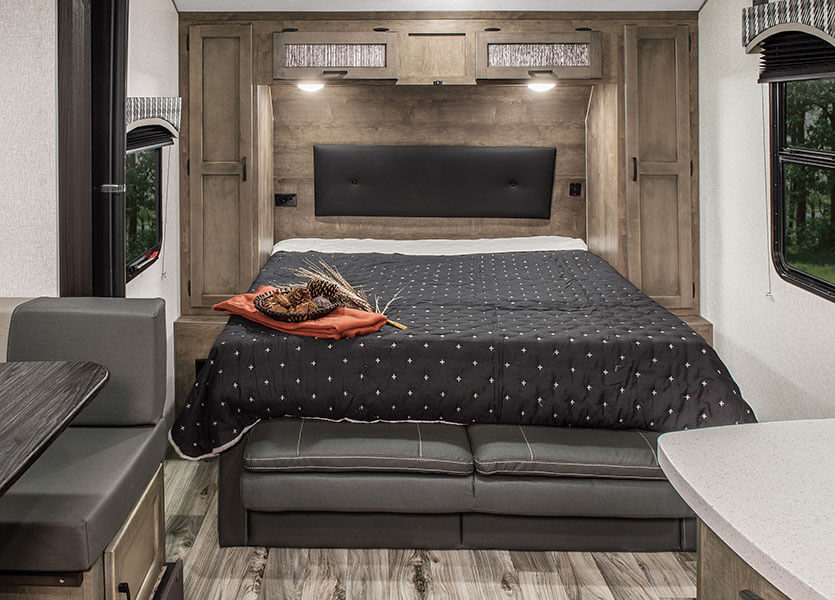

In the bed area, Sonic X offers a Murphy bed with foam mattress upgrade, StorMore nightstands with 110V and USB port, under-bed storage, and two shirt closets.
-

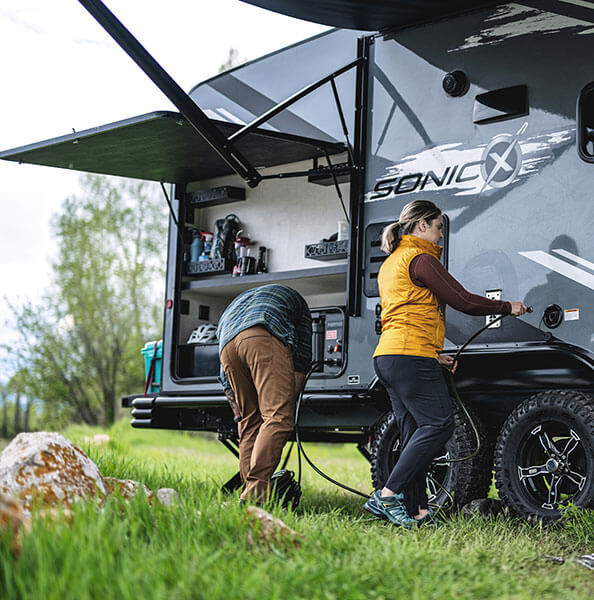

Camp anywhere at any time using energy-efficient and clean solar power. The GO Power Solar Package with a lithium ion battery, coupled with a low-consumption power air conditioner, allows for up to five hours of A/C without a recharge! (contingent on weather conditions)
- (2) 190 Watt Roof-Mounted Solar Panels
- (2) 250 Amp Hour Lithium Ion Battery
- (1) IC2000 Watt Inverter w/Charger
-
11.5 BTU Low Profile/
Low-Consumption Power A/C -
High Definition Interior/
Exterior LED Lighting
-

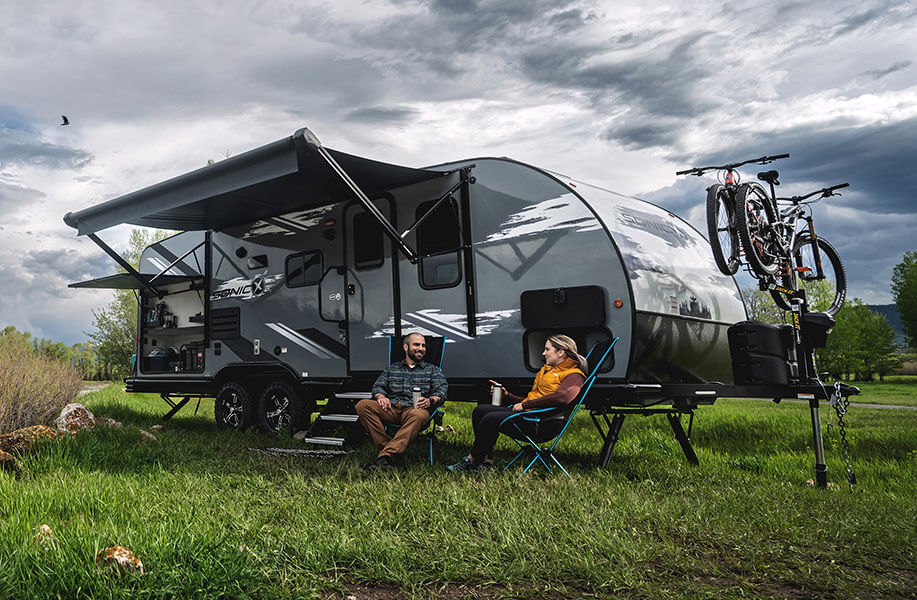

Need to get away from it all? The Sonic X ultra-lite travel trailer is the RV for you. Explore the backcountry in confidence with our tough Off-Road Package!
- 360-Degree Welded Tubular Brush Guard
- (2) Roof-Mounted High Definition LED Light Bars
- Triple Stack Round Welded Bumper
- (4) 15" Off-Road Tires
- 15" Under-Mount Spare Tire
- (2) 3,500 LB Torsion Axles
- (4) High-Rise Power Stabilizer Jacks w/Independent Motors
- 7 1/2" BAL Norco NXG Huck-Bolted Frame
- 78 GAL Fresh Water Tank
-

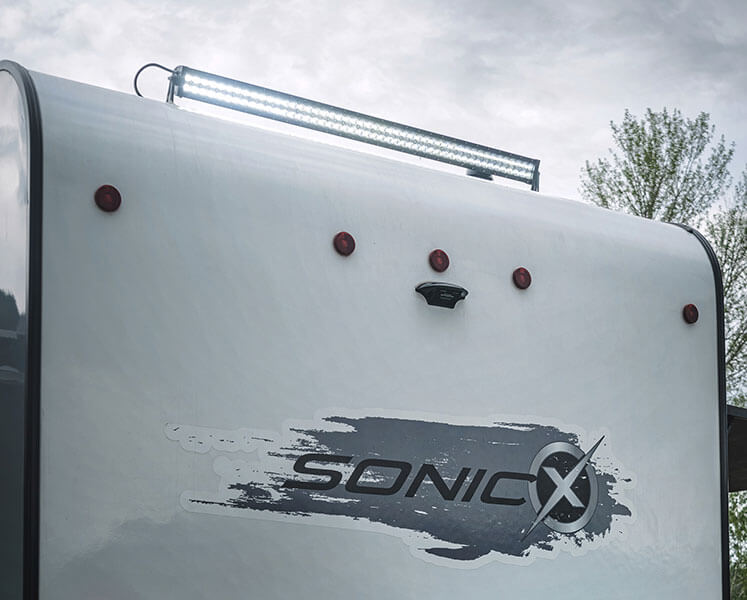

Front and rear LED light bars assist in loading and unloading.
-

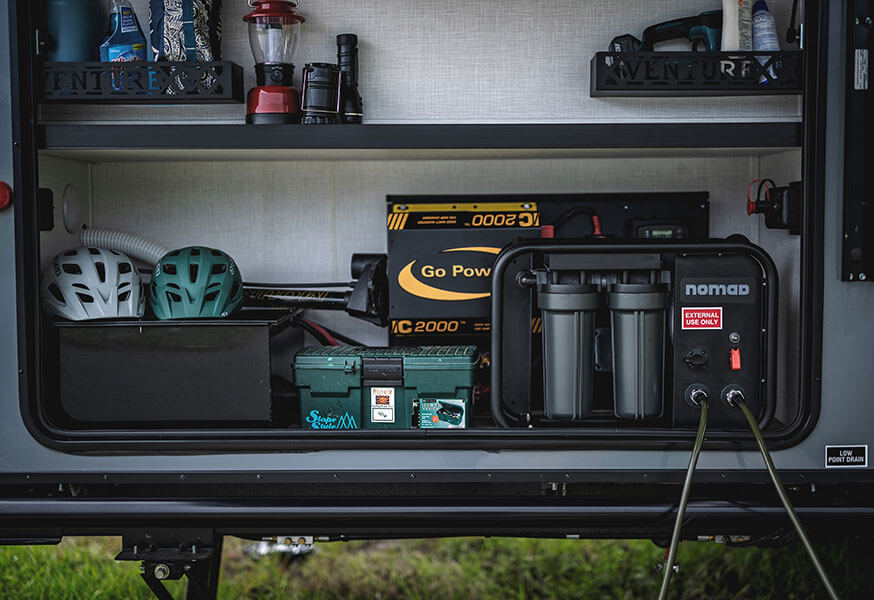

The Clearsource Nomad water filtration system will pull water from any source and purify it. Designed with the most outgoing campers in mind, this system will keep you hydrated, clean, and ready for your adventure. You’ll have access to clean and safe water no matter where you go.
- Works with any 12-volt battery
- 15 amp pump can draw water from a distance of up to 100' or 20' of elevation
- Dual filters that remove harmful bacteria
- Solid construction featuring a powder-coated chassis and heavy-duty electrical components
- Safety protected on/off switch
- Built-in attachment points for permanent mounting
-
Do you enjoy land- or water-based outdoor adventures? Take them with you with Sonic X’s Toy Storage System!

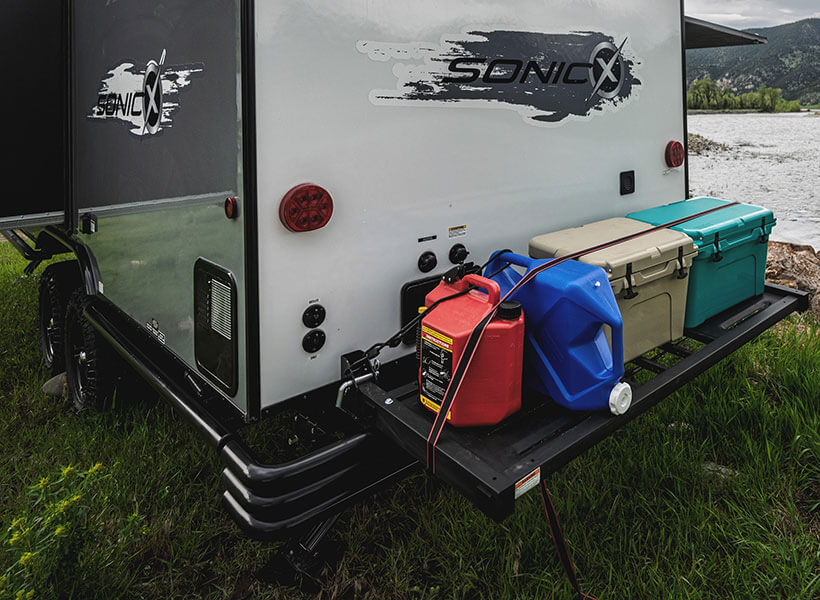

- Convertible Gear Rack
- Hitch-Mounted Bike Rack
- Outside Garage Storage System
-

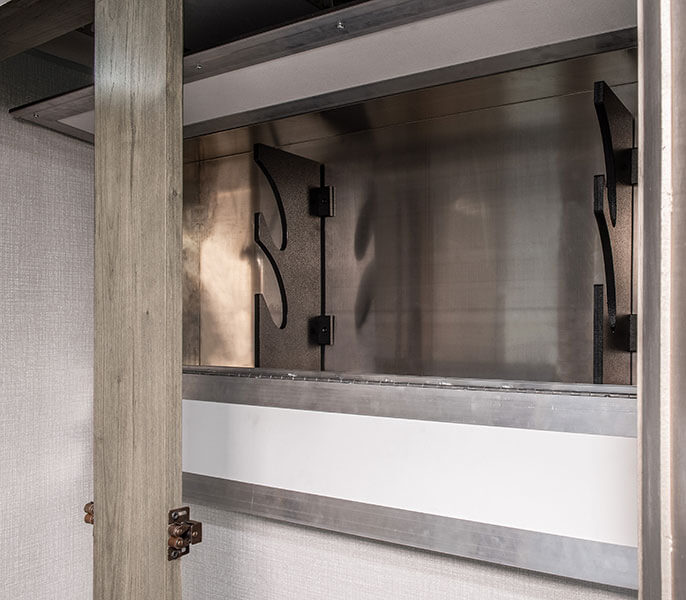

Concealed Gun/
Fishing Rod Cabinet
-

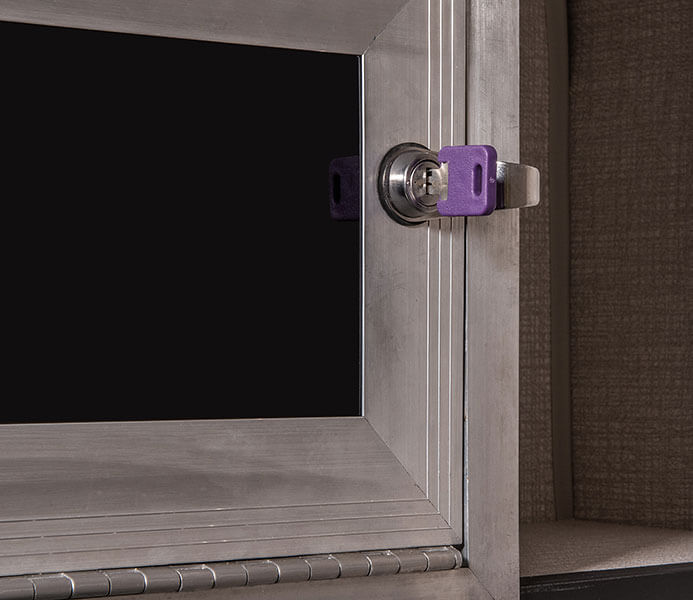

Built-in wall safe.
-
Large hidden storage for fishing poles or hunting rifles.
-

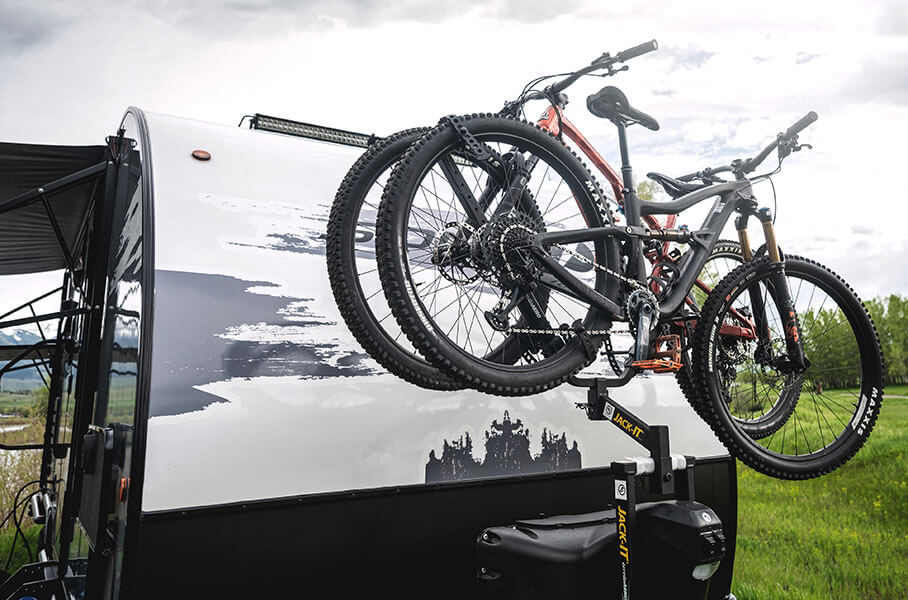

Front-mounted bike rack holds up to two bikes.
-
Sonic X’s Weather Shield features a radiant foil barrier, forced heat, and enclosed underbelly.
-
LevelMate PRO lets you level your unit on the first try!
View User Manual
NXG Frame
-
The NXG Frame is a superior quality, highly engineered frame that provides customers with a strong, lightweight, consistent foundation on which to build.
- ELIMINATES:
- Frame failures due to sub-standard steel
- Construction issues caused by improperly placed components
- Uneven main rails - varying camber
- Corrosion caused by incomplete coverage due to painting of stacked frame assemblies
- Paint failures caused by inadequately washed components
- KEY FEATURES:
- Constructed with HSLA - High Strength Low Alloy Prime Steel with specifically controlled properties
- CNC controlled rail fabrication allows placement of components precisely where the manufacturer wants them
- Manual welding is minimized. Common components are robotically welded for consistent quality
- All fastened components are joined with Huck® fasteners. Huck fasteners provide consistent clamp load
- CNC controlled camber
- Designed with flush floor slideouts. Ensuring no rise between slideout and main floor for easier movement throughout the unit
