2023 SportTrek Touring Edition Features
2023 Décor
-
Ash
-
Slate
-
Heirloom Maple
-
Antique White
Standards and Options
-
Elite Package 1.4
Venture LevelMate PRO, Go Power roof-mounted solar prep, tucked bumper w/2" accessory hitch, live edge accent tops, rear backup lighting, exterior docking station, Venture connectivity board w/bluetooth control, modern farmhouse design, Wi-Fi prep, entry door w/clear-view window, HDMI/DVD stereo w/5.1 AMP USB charger, Western Pine board accent walls, new cabinet pulls, 40" or 50" smart TV w/swing arm, barn door-style passage doors, RV Airflow System w/up to 40% more A/C air flow, oval stainless steel bathroom sink, heirloom comforter w/pillow package, Serta Memory Foam mattress, 21" Furrion Oven, 10 CU FT double-door refrigerator, large single-bowl under-mount stainless steel kitchen sink, (2) dish drying sink covers, Venture cutting board, fiberglass slide out end walls, pet defender screen protector, Beauflor slide out floors (no carpet).
-
Weather-Shield Package (Mandatory)
Forced air heated & enclosed underbelly, enclosed gate valves, 360-degree residential fiberglass insulation, 360-degree radiant foil insulation, radiant foil-wrapped tanks & reflective PVC roof membrane w/lifetime warranty, Azdel Onboard composite panels.
-
SportTrek Touring Package (Mandatory)
Pass-thru motion light, 5/8" tongue & groove plywood floor decking, NXG Huck bolt frame, EZ Lube hubs, under-mount spare tire, rear ladder, walkable roof, hot & cold outside shower, black tank flush system, Furrion marine-grade detachable power cord, prewired for backup camera, stabilizer accent lighting, LED lighted power awning, Keyed Alike key system, battery disconnect, Safe-Tek hidden storage w/charging center, 82" interior ceiling, 72" slideout height, flip-up solid step, automotive panoramic front window, window seat (most models), friction hinge entry door, interior entry door motion light, 6 GAL gas/electric DSI water heater, 15K BTU A/C, 50A service w/2nd A/C prep, full-extension ball bearing drawer guides, stainless steel appliances, 3-burner high-output range w/flush-mount glass cover, microwave.
-
Exterior Luxury Package (Mandatory)
Painted fiberglass front cap w/integrated LED light, upgraded graphics package, BAL independent electric stabilizer jacks, lighted power tongue jack, tinted frameless windows, slam-latch baggage doors w/magnetic catches, motion-activated pass-thru storage light, foldup trek step, Venture bottle opener/dog tie down, (2) 30 LB LP tanks w/cover, screen shot screen door.
-
Interior Luxury Package (Mandatory)
Solid-surface kitchen countertops, designer valances w/fabric nightshades, solid hardwood cabinet doors & drawer faces, residential carpet, motion-activated interior entry light, Beauflor wood plank flooring w/7-year limited warranty, porcelain foot-flush toilet, deluxe tri-fold sofa & theater seats (varies by model), king bed master suite (queen 343VBH, 343VIB), washer/dryer prep (VBF), heat & massage in theater seating (VBF), (2) 30" frameless fireplaces.
-
Options
LevelMate PRO leveling system, Off-the-Grid solar PKG, incl. (1) 100W panel & controller, tri-fold sofa, 2nd A/C, 40" smart TV (including swing arm bracket) (272, 302, 312, 343VIB, 343VBH), 50" smart TV (including swing arm bracket) (333s, 336, 343VIK), King-U sofa (super-slide models only), theater seating w/heat, massage & USB ports IPO tri-fold (272VRK, 302, 312), swing-away bumper-mount griddle, Furrion observation/backup camera, booth dinette, table & chairs, Maxx Air bedroom fan, 8 CU FT gas/electric refrigerator.
Dexter Axles
Top Features
-

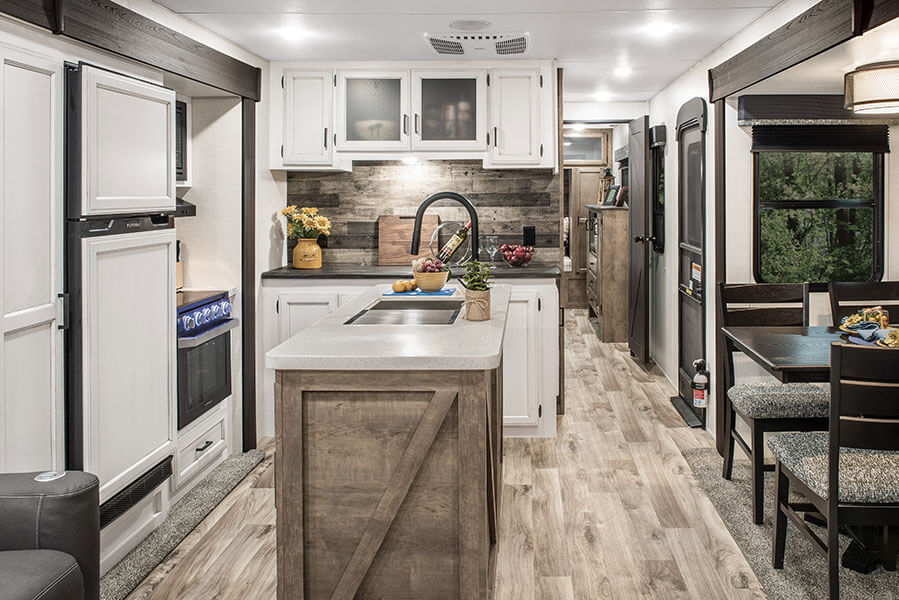

Touring’s kitchens are elegant, yet functional, and exhibit all the features of your home kitchen. Island units boast an appliance hutch, and all offer generous storage, skylights with shades, tilt-out utility tray and waste basket storage. (STT343VIK shown)
-

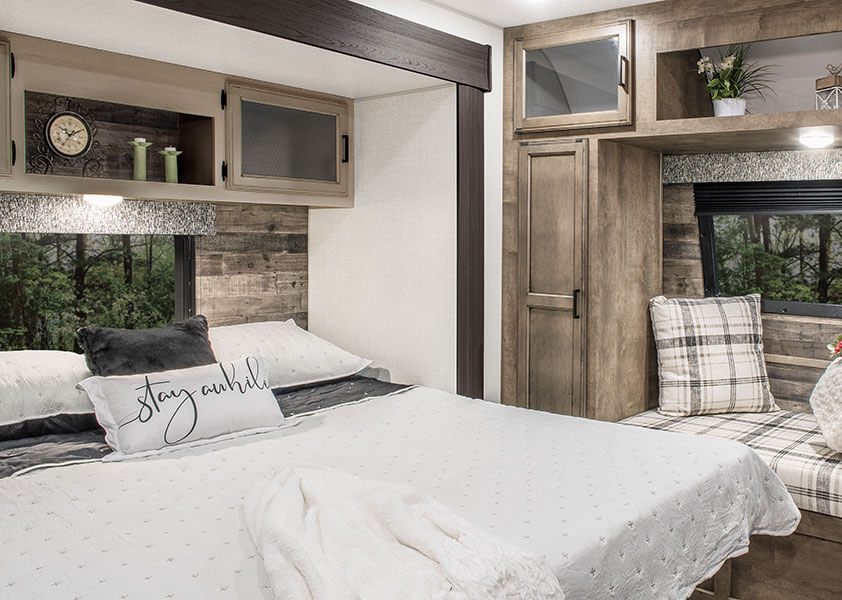

Bedrooms offer barn-style door(s), storage galore, upgraded foam mattress, USB and 110V access above the bed, shelf with 110V outlet, and TV/satellite connections. In addition, two gas struts assist in lifting the bed to access under-bed storage. (STT343VIK shown)
-

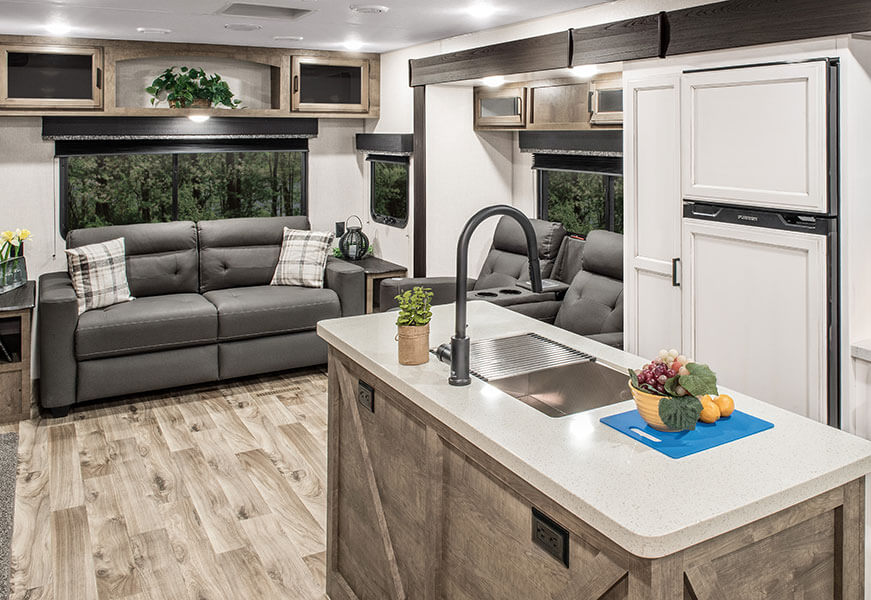

SportTrek Touring STT343VIK, shown in Slate Décor, boasts an island kitchen with solid surface countertop and extremely comfortable seating accommodations.
-

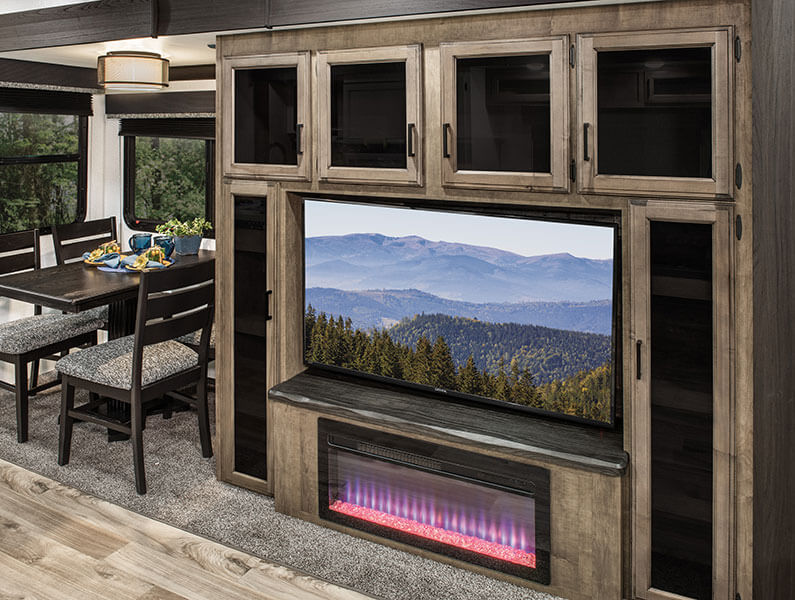

Living spaces are a dream, with 30-inch fireplaces in the living room and master bedroom. TVs are either 40-inch or 50-inch, depending on floorplan (STT343VIK shown with 50-inch TV).
-

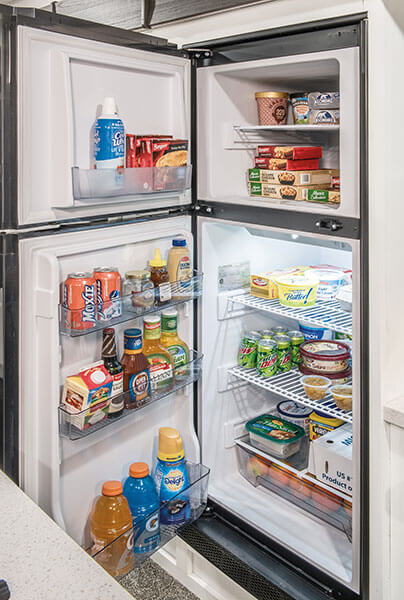

10 CU FT double-door refrigerator with Antique White cabinet front.
-

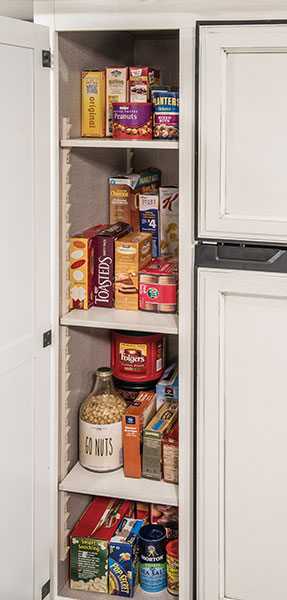

Pantry provides tons of storage with adjustable shelves.
-

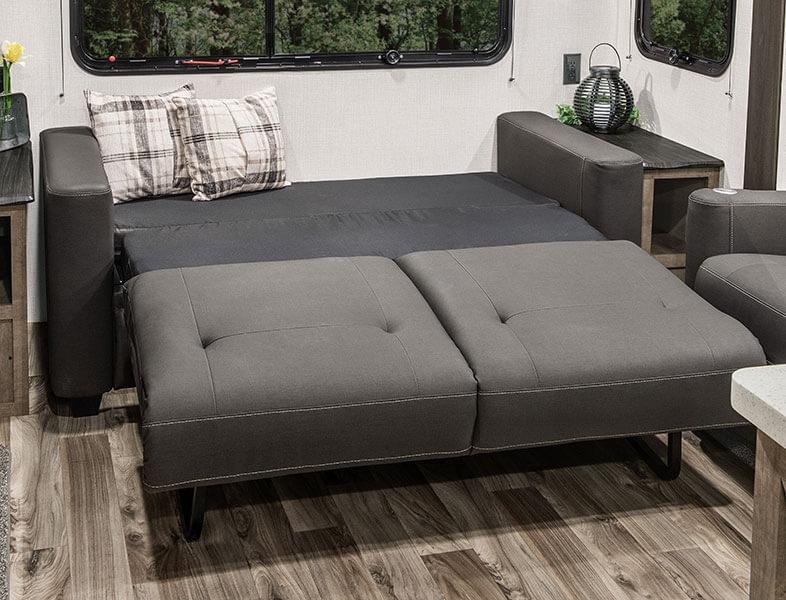

Tri-fold sofa is easy to convert and comfortable, whether used as a sofa or a bed (VBF).
-

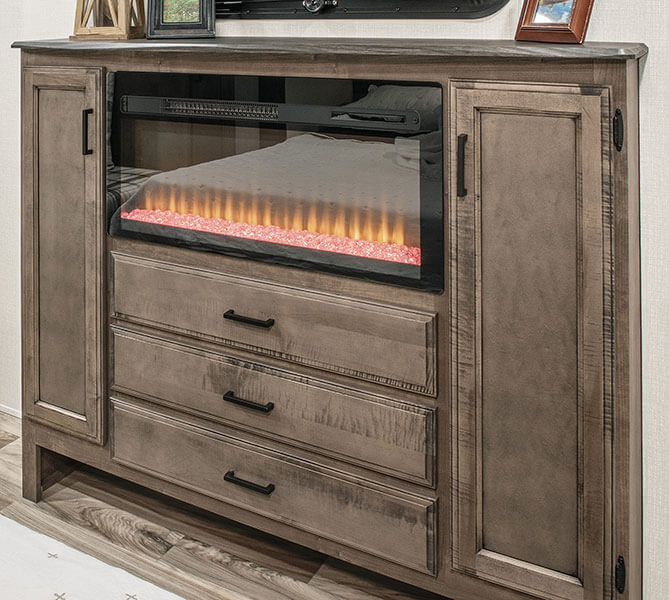

Cozy X2 – standard 30-inch bedroom fireplace produces 5,000 BTUs of electric heat, plus an additional standard 30-inch living room fireplace provides ambience throughout the trailer.
-

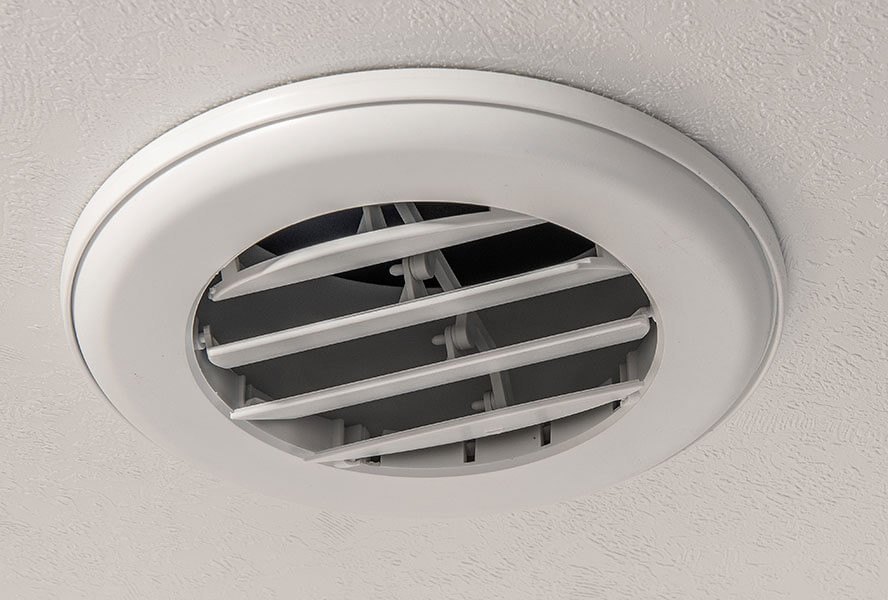

Multi-directional A/C vent.
-
Safe Tek Box hidden charging station and valuables storage.
-

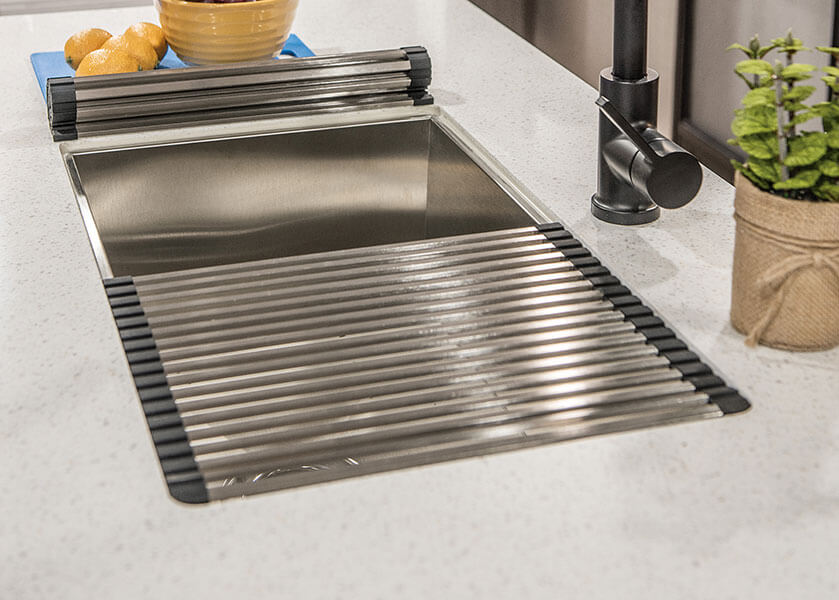

Sink cover drains food and dishes, and rolls out of the way for sink use.
-

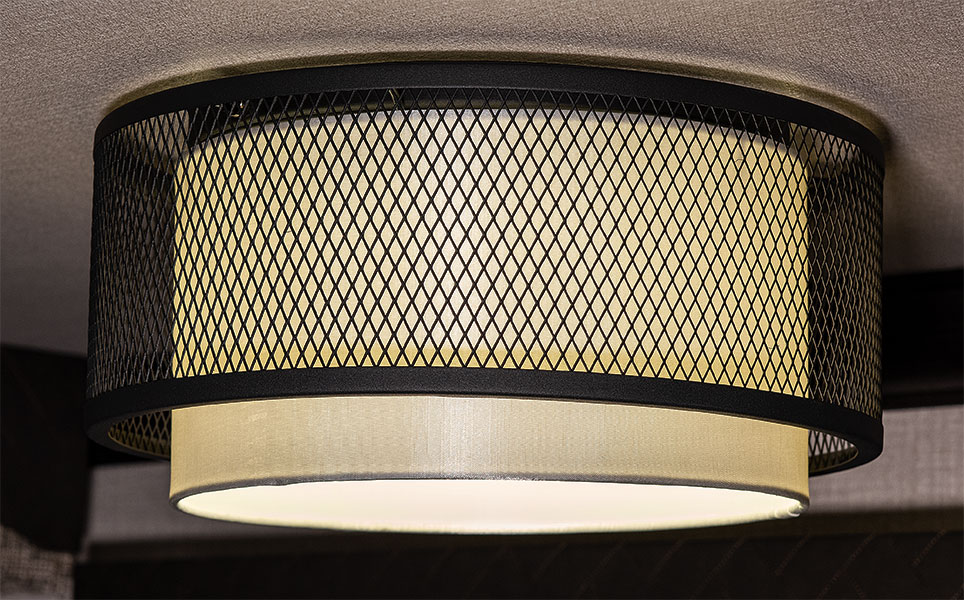

Elegant modern farmhouse light fixture.
-

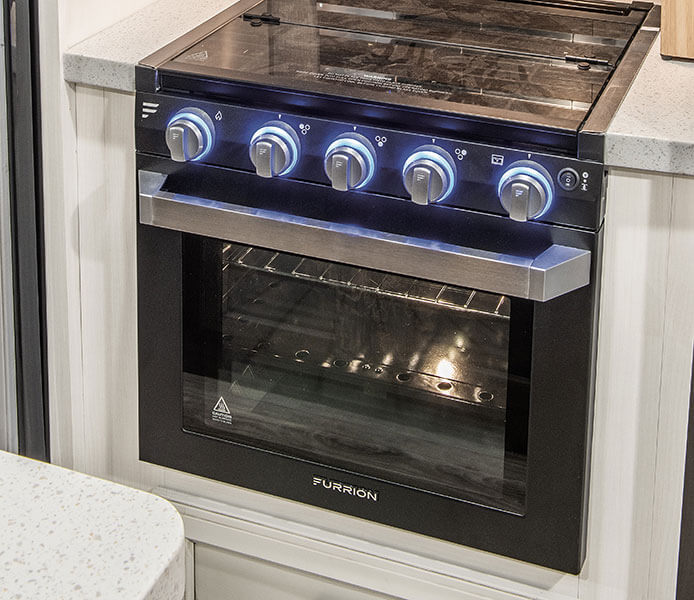

Flush-mounted 21-inch stove with glass cover and accent lighting.
-

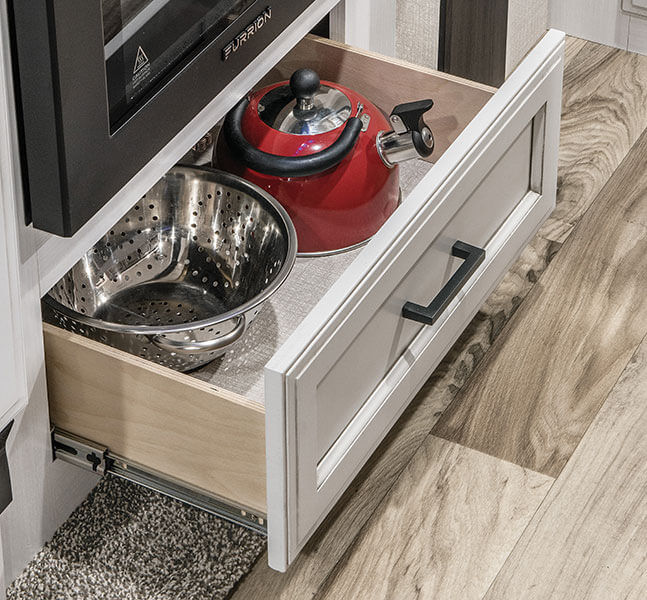

Extra-large pots and pans storage drawer.
-

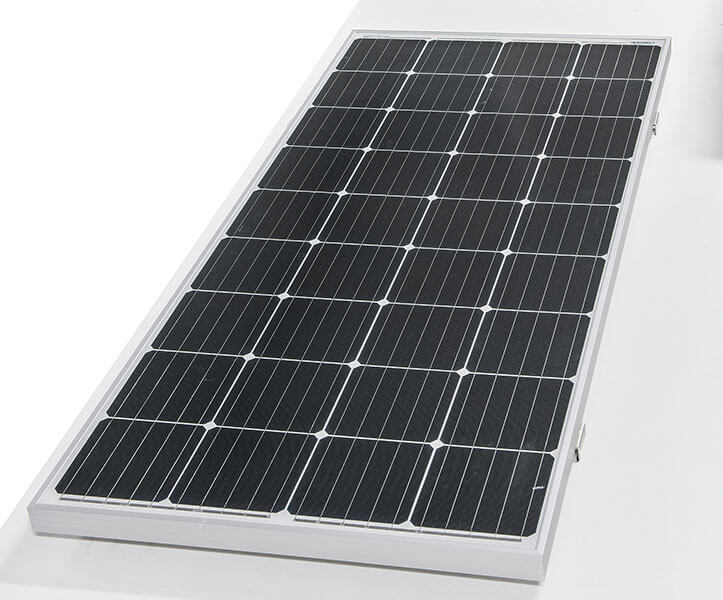

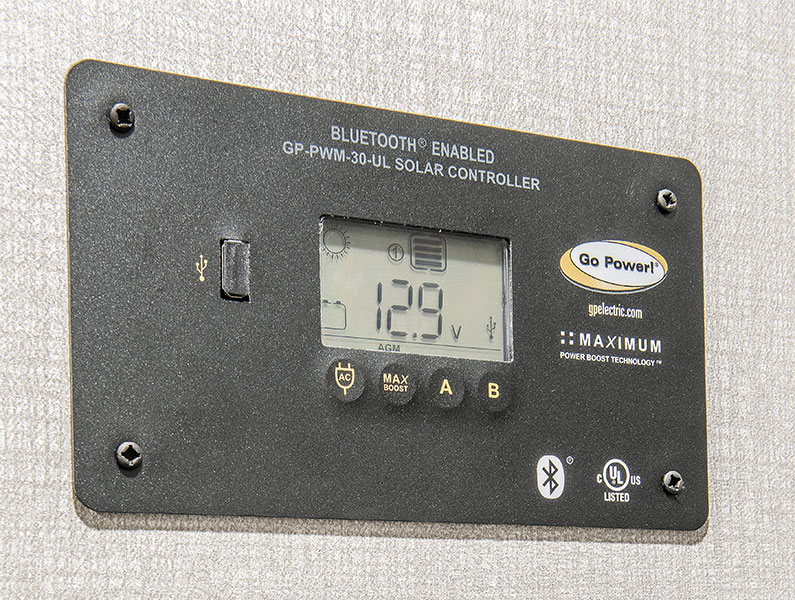

Optional solar monitor and 100 Watt solar panel.
-

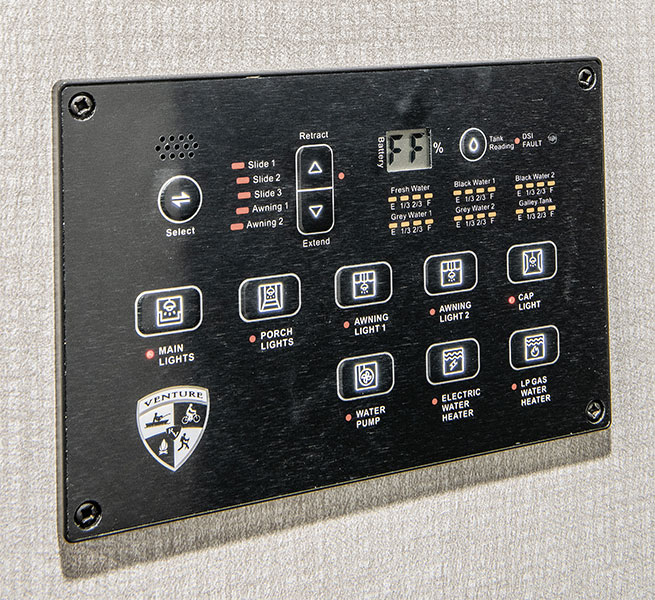

Stay connected with Venture RV’s control panel with Bluetooth.
-

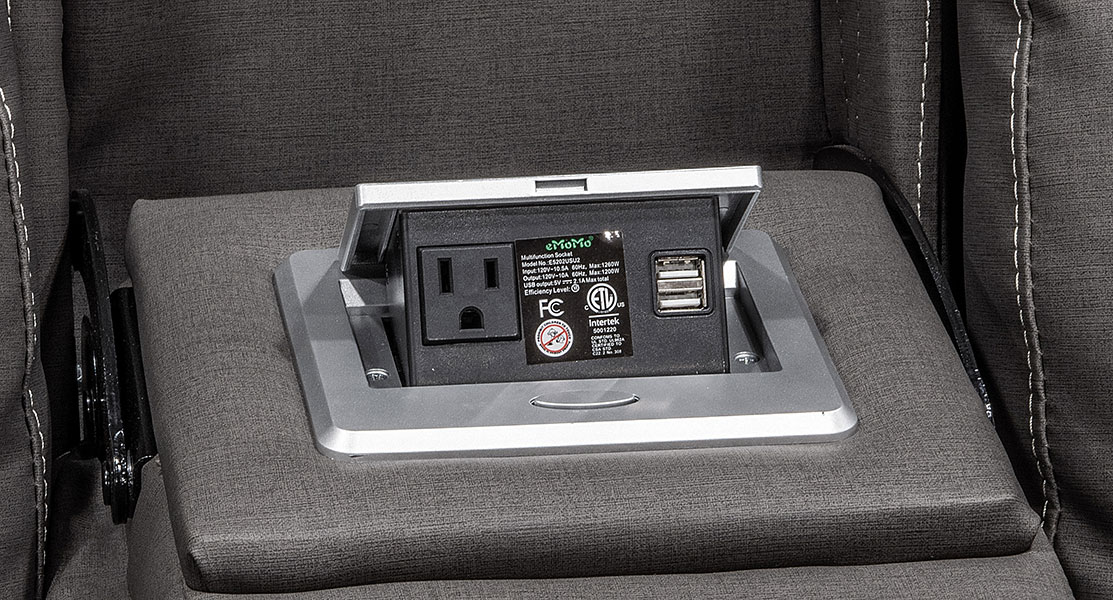

Theater seats include a center fold-down arm, which includes a 110V receptacle and USB connection.
-

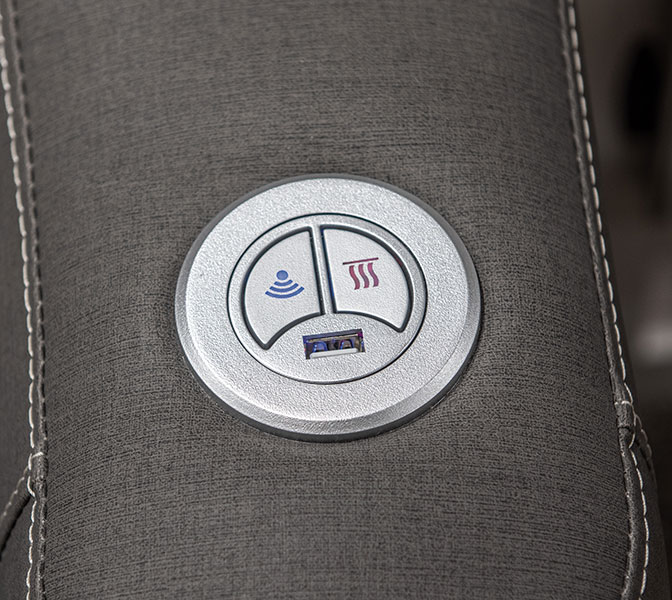

Theater seating includes USB plug, heat and massage controls at your fingertips.
-

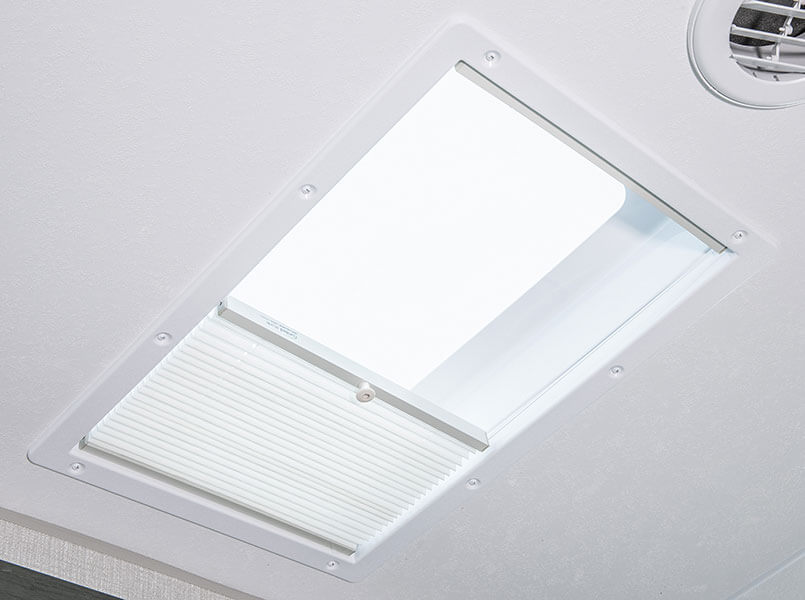

Skylight with shade provides natural lighting.
-

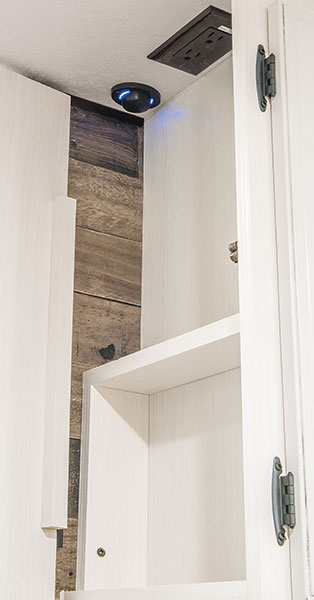

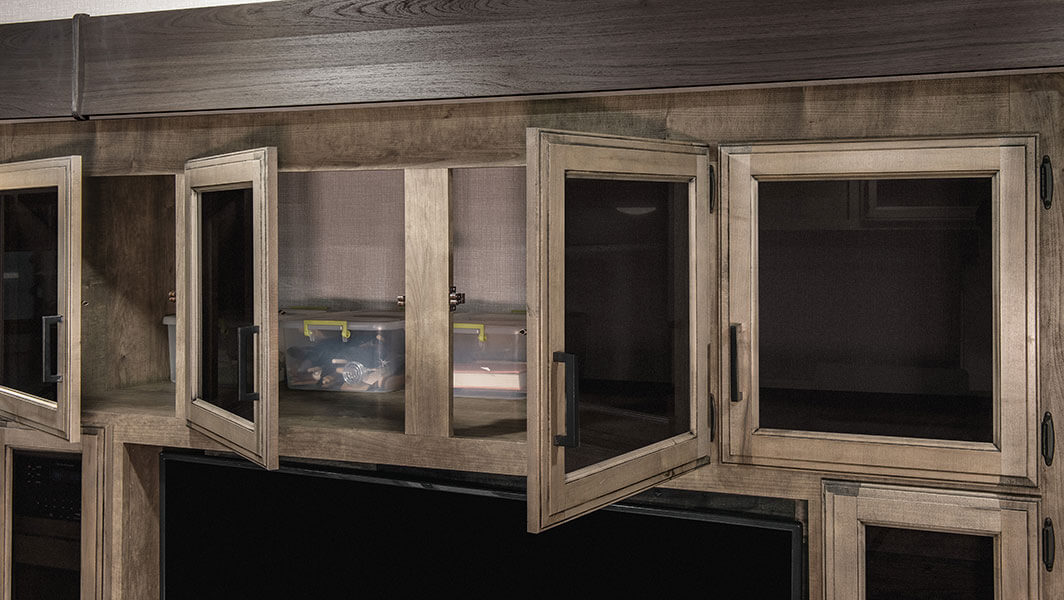

Overhead storage above entertainment center offers the most storage in its class.
-

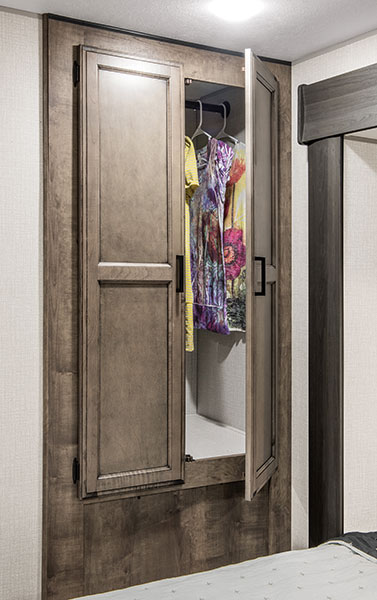

Bedroom closets are roomy, offer ample storage, and washer/dryer prep is standard (varies by floorplan).
-

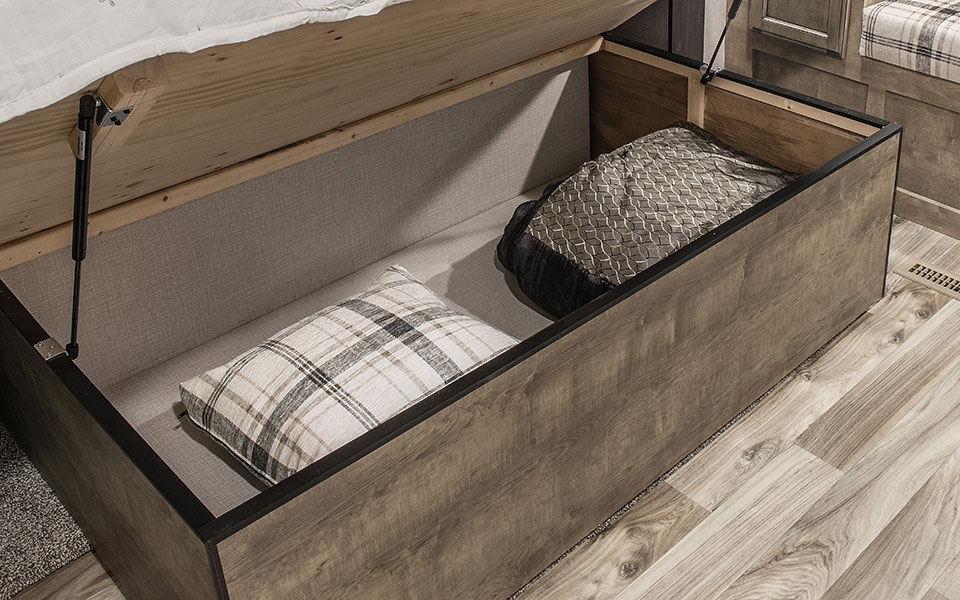

Master bedroom features window-seat bench storage, and under-bed storage.
-

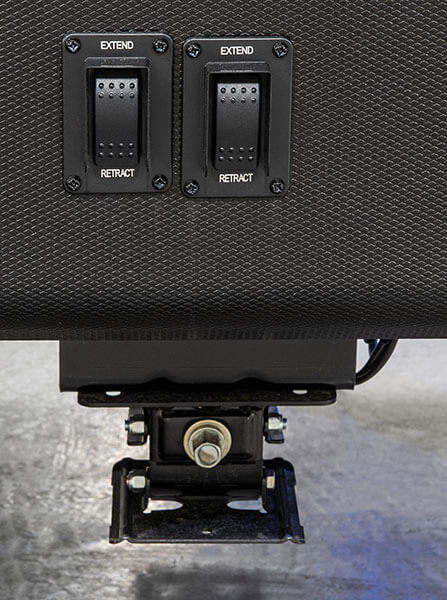

4 power stabilizer jacks, each with its own independent motor.
-

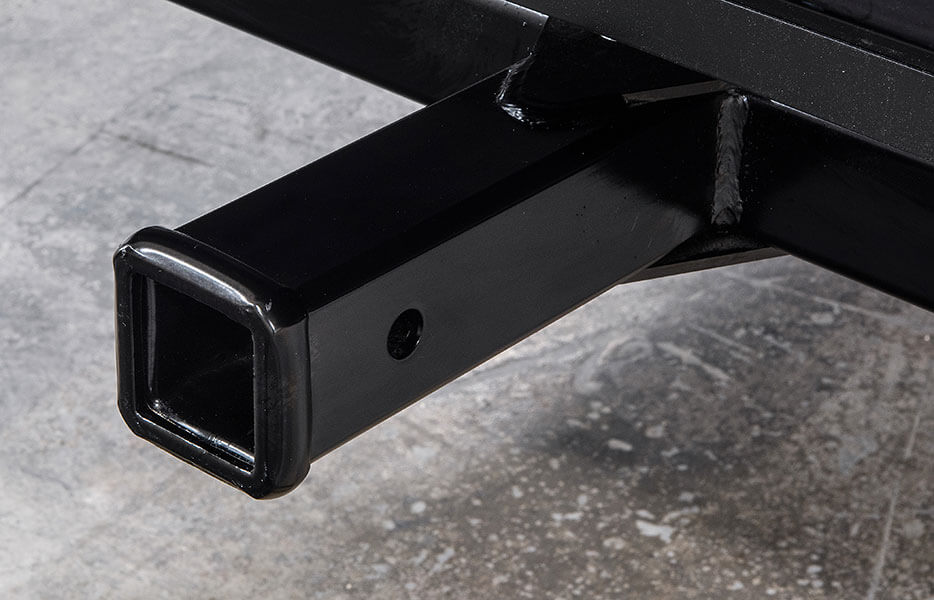

2-inch accessory hitch is integrated into the frame.
-

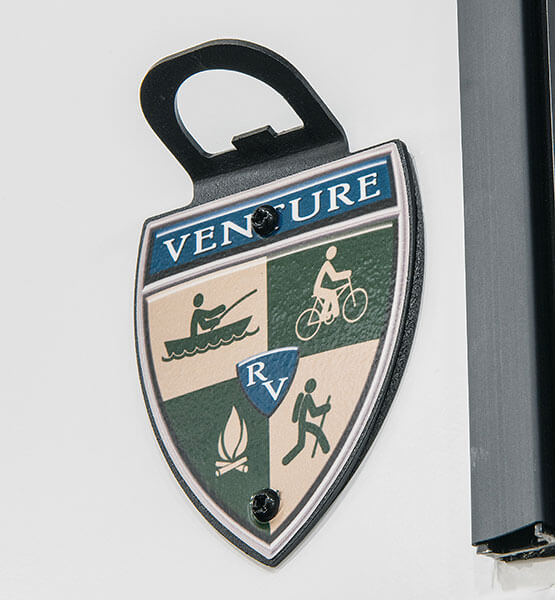

Venture bottle opener/doggie tie-down.
-

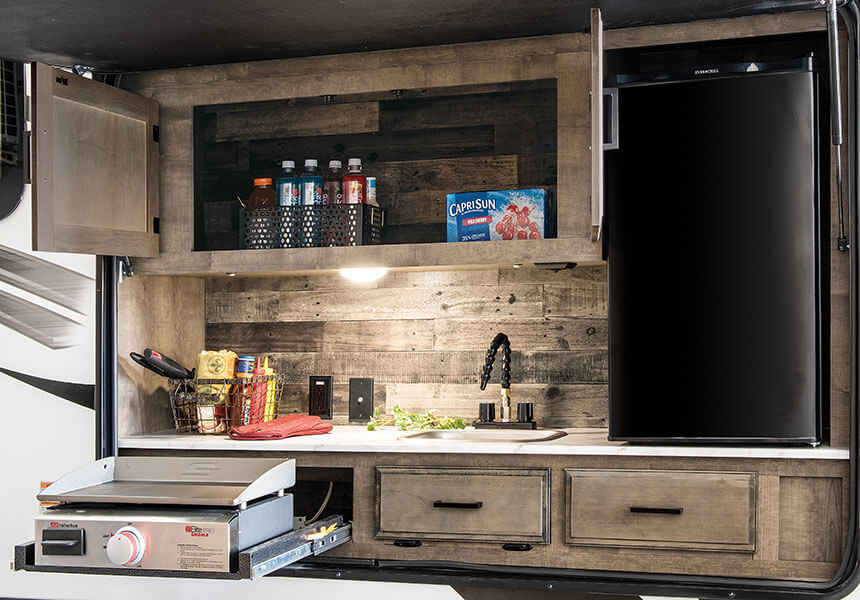

This Campfire Café outside kitchen includes large refrigerator, pullout griddle, sink with hot and cold water and tons of storage areas. It’s standard on the 333VFK, 333VMI, 336VRK and the 343VIK.
-
Available Off-the-Grid solar package.
-

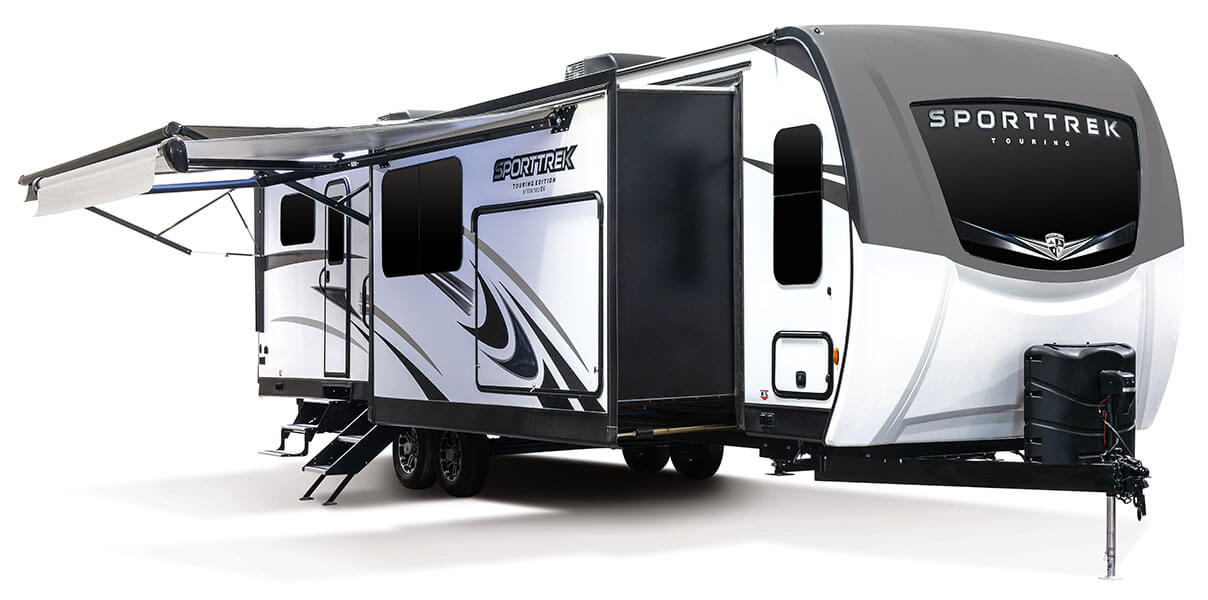

Multi-directional power awning with LED lights, frameless windows, slam latch baggage doors with magnetic catches and painted full fiberglass front cap with panoramic automotive front window.
-

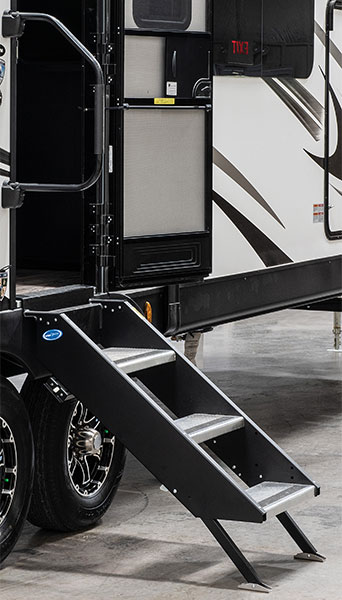

All SportTrek Tourings feature a solid flip-up step and friction-hinged entry door with Screen Shot screen door.
-
72 1/2-inch flush floor slides!
-
82-inch interior heights!
-
SportTrek Touring’s Weather Shield features a radiant foil barrier, forced heat, enclosed underbelly, enclosed gate valves and reflective PVC roof membrane with limited lifetime warranty.
-
LevelMate PRO lets you level your unit on the first try! This feature calculates and displays the height required to achieve a perfectly level position. An arrow is displayed to indicate where the height needs to be added, further simplifying what has traditionally been time consuming guesswork. Simply level, using the height indicated and when the red level indicator turns green, you’re done!
View User Manual
NXG Frame
-
The NXG Frame is a superior quality, highly engineered frame that provides customers with a strong, lightweight, consistent foundation on which to build.
- ELIMINATES:
- Frame failures due to sub-standard steel
- Construction issues caused by improperly placed components
- Uneven main rails - varying camber
- Corrosion caused by incomplete coverage due to painting of stacked frame assemblies
- Paint failures caused by inadequately washed components
- KEY FEATURES:
- Constructed with HSLA - High Strength Low Alloy Prime Steel with specifically controlled properties
- CNC controlled rail fabrication allows placement of components precisely where the manufacturer wants them
- Manual welding is minimized. Common components are robotically welded for consistent quality
- All fastened components are joined with Huck® fasteners. Huck fasteners provide consistent clamp load
- CNC controlled camber
- Designed with flush floor slideouts. Ensuring no rise between slideout and main floor for easier movement throughout the unit
NXG Slide
-
BAL has set the new standard in slide-out technology with the award winning ‘NXG SLIDE’ rack drive slide-out. The NXG SLIDE system provides an unmatched level of durability and precision that was not available in older generations of slide-out mechanisms. Due to the systems rigidity and tightness, a user should experience years of trouble-free performance. All components of the NXG SLIDE mechanism are individually coated with highly effective corrosion-resistant e-coat or plating for extended life of the slide-out drive. Required maintenance is limited to periodic cleaning and lubrication of the main drive arms of the system. For additional information regarding the NXG SLIDE or other BAL products, please visit www.norcoind.com/bal.
