2023 SportTrek Features
2023 Décor
-
Ash
-
Slate
-
Heirloom Maple
-
Antique White
Standards and Options
-
Expedition Package 1.4
Tucked bumper w/2" accessory hitch, rear backup lighting, slam latch baggage doors w/magnetic catches, Venture LevelMate PRO, high-polished aluminum rims w/black accents, power tongue jack, Go Power roof-mounted solar prep, exterior docking station w/outdoor shower, new modern farmhouse design w/Antique White cabinetry, Heirloom Maple cabinetry in living room, bathroom & bedroom, modern farmhouse-style passage doors, Wi-Fi prep, entry door w/clear-view window, HDMI/DVD stereo w/5.1 AMP USB charger, shiplap board accent walls, 40" smart TV w/swing arm, 5,000 BTU electric frameless fireplace, closable A/C vents, Venture command board, RV Air Flow system with 40% more efficient A/C air flow, 60" x 80" Memory Foam Serta mattress, 10 CU FT double-door refrigerator, large single-bowl under-mount stainless steel kitchen sink, dish drying sink cover, Venture cutting board, pet defender screen protector, fiberglass slide-out end walls, Beauflor slideout flooring (no carpet).
-
Weather-Shield Package (Mandatory)
Forced air heated & enclosed underbelly, enclosed gate valves, 360-degree residential fiberglass insulation, 360-degree radiant foil insulation, radiant foil-wrapped tanks & reflective PVC roof membrane w/lifetime warranty, Azdel Onboard composite panels.
-
Trek Package (Mandatory)
5/8" tongue & groove plywood floor decking, NXG Huck bolt frame, EZ Lube hubs, (4) angled stabilizer jacks, (2) 20 LB LP tanks w/easy access cover, walkable roof w/lifetime warranty, hot & cold outside shower, Furrion marine-grade detachable power cord, LED stabilizer accent lighting, motion activated interior entry & pass-thru storage lights, battery disconnect, Safe-Tek hidden storage w/charging center, 72" slideout height, overhead storage in slideout, skylight w/shade, Venture bottle opener/dog tie-out, jiffy w/fold-down center console, LED power awning, 6 GAL gas/electric DSI water heater, backup camera prep, Keyed Alike key system, USB charging ports, 82" interior ceiling, pleated nightshades, hardwood cabinet doors & drawer faces, full-extension ball bearing drawer guides, shoe cubby (VBF), flip-up solid step, radius glass shower enclosure (VBF), porcelain foot-flush toilet, full-length closets w/StorMore nightstands, tufted dinette cushions, microwave, seamless Surf(x) countertops & tabletops, pots & pans drawer & adjustable pantry shelves (most models), Furrion oven & 3-burner cooktop w/flush-glass cover.
-
Trail Package (Mandatory)
Spare tire/carrier, ladder, black tank flush.
-
Options
LevelMate PRO leveling system*, lighted power tongue jack*, aluminum rims*, swing-away bumper-mount griddle, Off-the-Grid solar PKG, incl. (1) 100W panel & controller, (4) power stabilizer jacks, 15,000 BTU A/C IPO 13,500 BTU A/C, 50AMP service w/2nd A/C prep, 2nd A/C (50AMP w/prep required), table & chairs IPO booth (N/A 241VMS), tri-fold sofa, theater seating w/heat, massage & USB ports (STD 312), King-U sofa (N/A 241VMS), 3/4 fiberglass front cap w/window, Furrion observation/backup camera, upgraded Serta mattress*, 8 CU FT gas/electric refrigerator.
*Included in the Expedition Package 1.4
-
Entertainment Package (Option)
40" HD LED smart TV w/swing-arm bracket.*
*Included in the Expedition Package 1.4
Dexter Axles
Top Features
-
SportTrek represents user-inspired design. Purposeful residential kitchen with continuous countertops, stainless steel under-mount sink with pull-down sprayer faucet, and recessed gas cooktop with glass cover, for added counter space.
-
All SportTreks offer tons of storage opportunities, and drawers offer full-extension ball bearing drawer glides. The cooking area also features a built-in oven with vented range hood, as well as a microwave with turntable. The sink cover drains food and dishes, and rolls out of the way for sink use.
-
Dinettes offer tufted dinette cushions and under-seat removable storage tubs.
-
Bedrooms include 60" x 80" residential queen beds and full-length closets with StorMore nightstands.
-
Flush-mounted 3-burner stovetop with glass cover, oven and back light.
-
Sink cover drains food and dishes, and rolls out of the way for sink use.
-
Double-door 10 CU FT refrigerator provides generous room for all your goodies.
-
An oversized, deep heavy-duty pot and pan drawer holds all sorts of sizable kitchen items. (varies by floorplan)
-
Tons of storage throughout, including a spacious pantry in most floorplans.
-
Optional theater seats recline individually, with heat and massage features.
-
The dinette converts to additional sleep space.
-
Dinette seats feature large removable storage bins secured by heavy-duty cabinet latches.
-
StorMore nightstands on each side of queen bed, behind full-length closets.
-

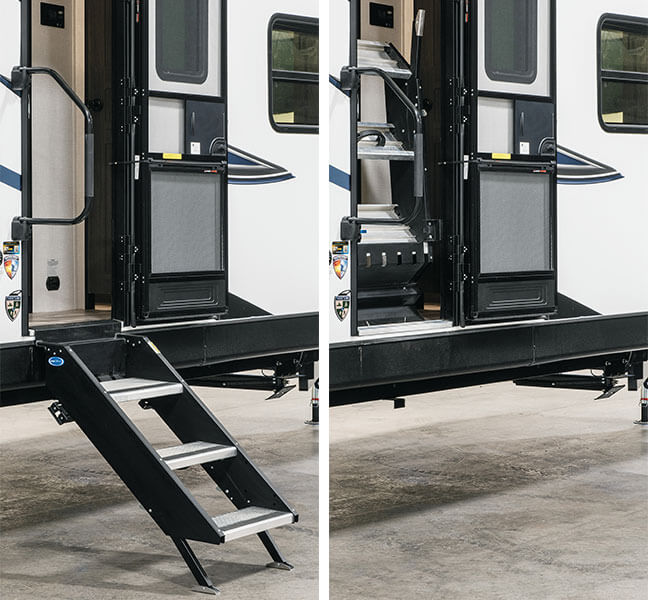

All SportTreks feature a solid flip-up step and friction-hinged entry door with Screen Shot screen door.
-

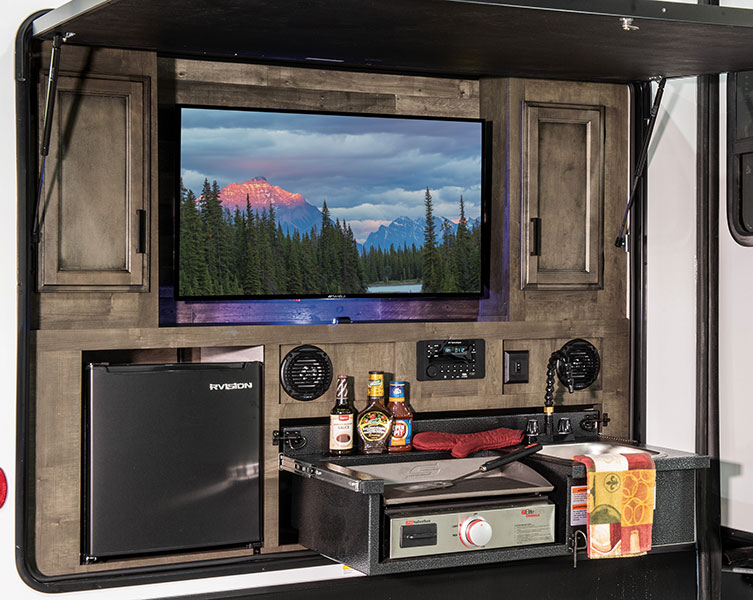

Campfire Cafés bring the conveniences of inside cooking to the outside, and can feature a refrigerator, griddle, sink, TV, sound system and storage. 4 different designs.
-
This Campfire Café boasts a griddle and sink with hot/cold water, plus a hose attachment and refrigerator.
-

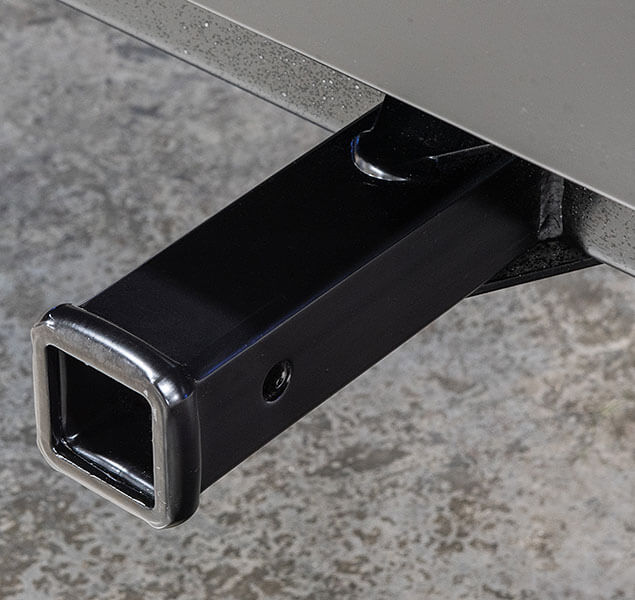

Optional rear 2-inch accessory hitch.
-

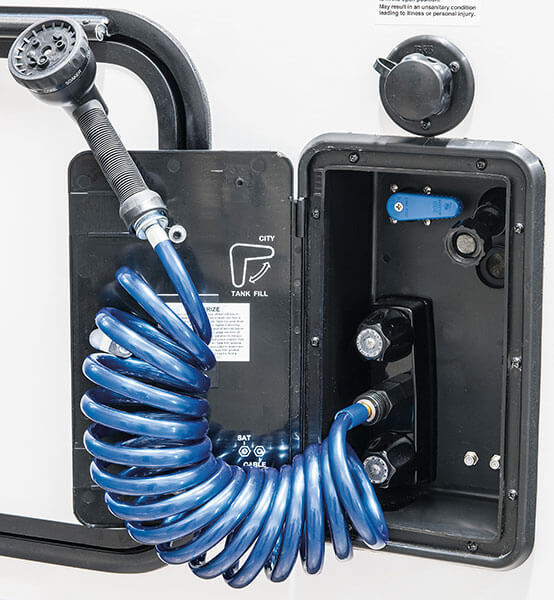

Convenient exterior shower with hot and cold water.
-

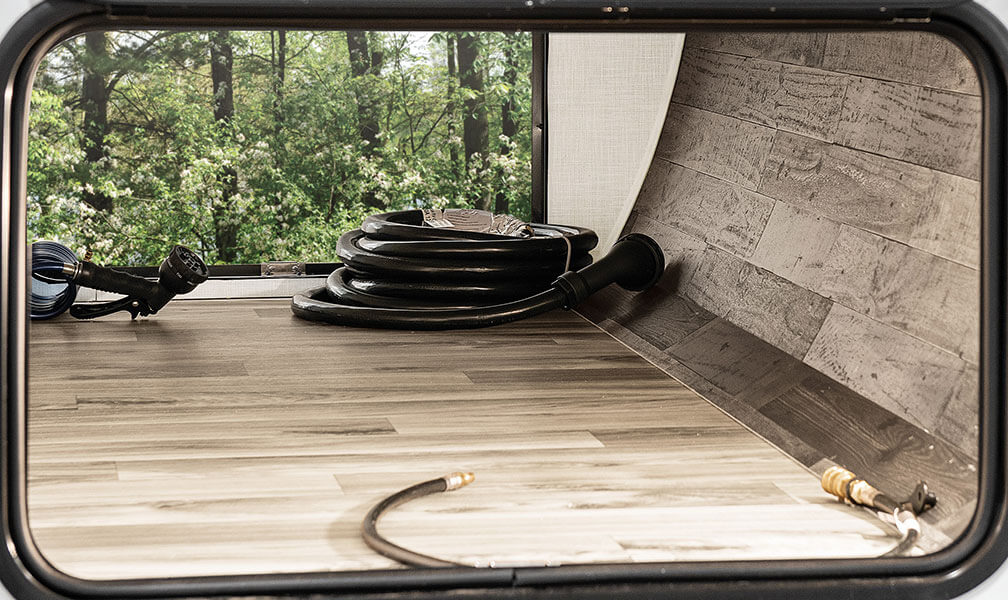

Magnetic slam-latch baggage doors with spacious pass-through storage.
-
SportTrek’s Weather Shield features a radiant foil barrier, forced heat, enclosed underbelly, enclosed gate valves and reflective PVC roof membrane with limited lifetime warranty.
-
LevelMate PRO lets you level your unit on the first try! This option calculates and displays the height required to achieve a perfectly level position.
View User Manual -
72" slide height with true flush floors.
-
82" ceiling height.
NXG Frame
-
The NXG Frame is a superior quality, highly engineered frame that provides customers with a strong, lightweight, consistent foundation on which to build.
- ELIMINATES:
- Frame failures due to sub-standard steel
- Construction issues caused by improperly placed components
- Uneven main rails - varying camber
- Corrosion caused by incomplete coverage due to painting of stacked frame assemblies
- Paint failures caused by inadequately washed components
- KEY FEATURES:
- Constructed with HSLA - High Strength Low Alloy Prime Steel with specifically controlled properties
- CNC controlled rail fabrication allows placement of components precisely where the manufacturer wants them
- Manual welding is minimized. Common components are robotically welded for consistent quality
- All fastened components are joined with Huck® fasteners. Huck fasteners provide consistent clamp load
- CNC controlled camber
- Designed with flush floor slideouts. Ensuring no rise between slideout and main floor for easier movement throughout the unit
NXG Slide
-
BAL has set the new standard in slide-out technology with the award winning ‘NXG SLIDE’ rack drive slide-out. The NXG SLIDE system provides an unmatched level of durability and precision that was not available in older generations of slide-out mechanisms. Due to the systems rigidity and tightness, a user should experience years of trouble-free performance. All components of the NXG SLIDE mechanism are individually coated with highly effective corrosion-resistant e-coat or plating for extended life of the slide-out drive. Required maintenance is limited to periodic cleaning and lubrication of the main drive arms of the system. For additional information regarding the NXG SLIDE or other BAL products, please visit www.norcoind.com/bal.
-
